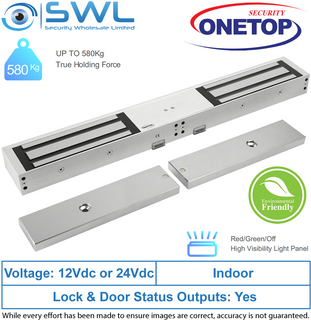

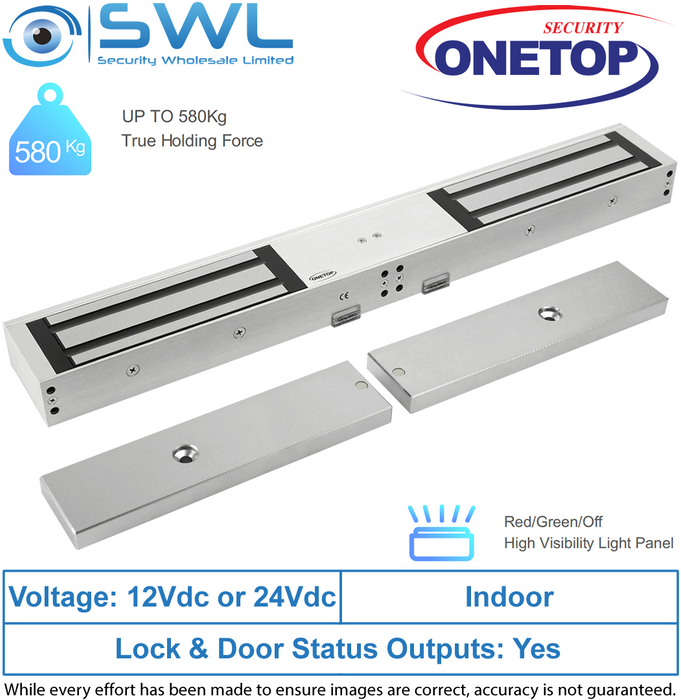

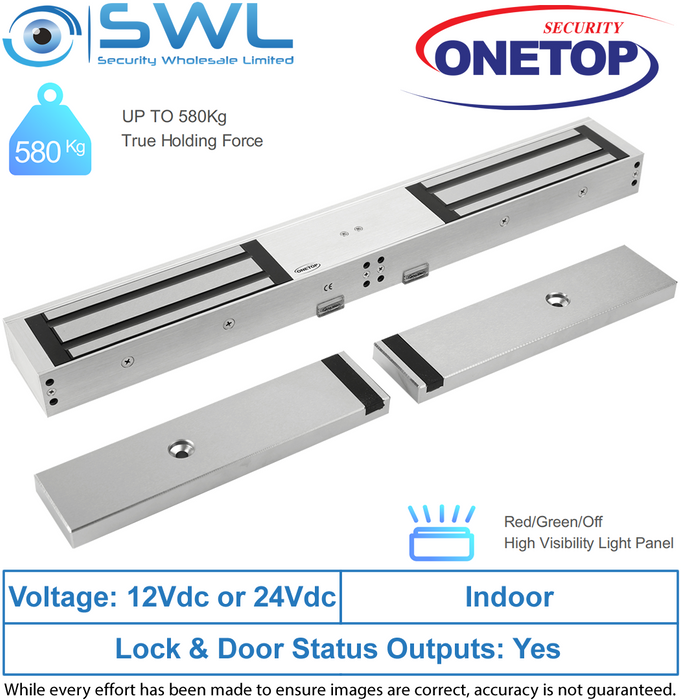

ONETOP EM5700D DSS: Double Door S/Mount Electromagnetic Lock 12/24VDC 580Kg

Stock Code:
58008
POA

Description

EM5700 series is a newly innovative Fail Safe locking device designed for corridor and entrance doors where safety is of paramount importance. Its unique feature of L-angle Light Panel makes the product much easier for status observation especially for night time patrol. With the Light Panel feature, EM5700 series has a unique, sophisticated appearance. EM5700 series locks have a holding force up to 550kg, Lock Status Sensor (LSS), built-in varistor (MOV) surge protection, and high resistance to corrosion. The EM5700DSS model, has an additional monitoring feature of Door Status Sensor (DSS).

Cycle Test Report (Standard: UL1034/BHMA):
To test the verification of lock working status and signal feedback to 1 million cycles. Testing carried out from May 26th to July 28th 2020.
Test method: EM5700 powered on 12V dynamic sliding door, with a frequency of not more than 17 cycles per minute, one time open and close mode.
Test result: The working dynamics and signals are normal for 1 million cycles (they can actually achieve 1.1 million cycles and still work normally!)

Features:

* Certifications - BS465: Tested under British Standard for a 4 hours fire resistance.
* Fail Safe - Power to lock
* Lock Body Dimension - EM5700D DSS - 535L x 73W x 40H (mm)
* Armature Plate Dimension - EM5700D DSS - 252L x 61W x 16H (mm)
* Lock Operating Voltage - 12/24VDC ±10%
* Lock Operating Current - 530mA/12VDC; 260mA/24VDC
* Lock Holding Force - Up to 580Kg
* Weight - EM5700D DSS 9.8Kg
* Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
* Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A
* Operating Temp -10°C ~60°C
* Operating Humidity - 0~95% (non-condensing)
* Light Panel Red/Green/Off indicating the status
* Surface Finish - Anodized Aluminium housing Zinc plated for anti-corrosion
