Description
********** EOL Special while stock last **********

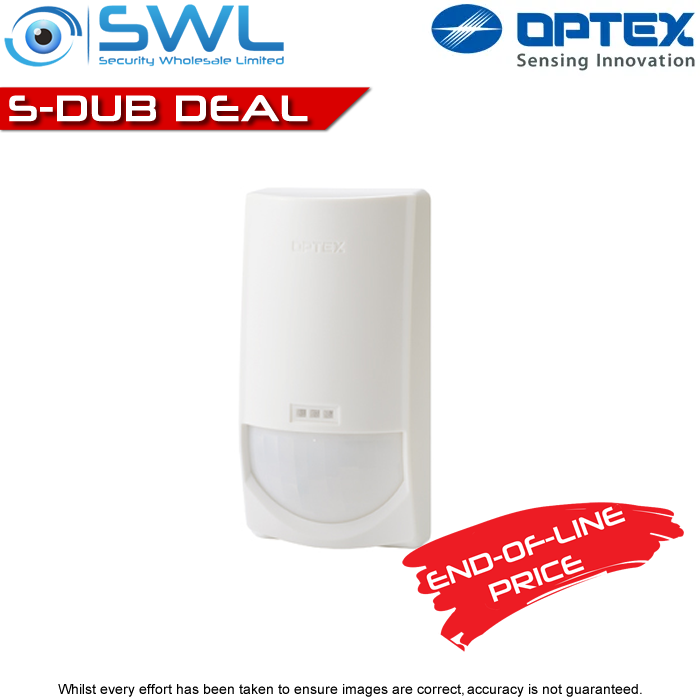

DX-NAM is an indoor sensor that provides 24 x 2m detection coverage, ideal to protect corridors. It features 82 detection dense zones and in the detection coverage, 4 or more zones must be crossed to distinguish between human and small animal detection. The CDX series uses AIR technology to detect masking. The CDX series differentiate between true masking and other masking caused by environmental changes such as dust/ dirt adhesion, temperature changes and direct light by optimizing it's sensitivity. The CDX-NAM also features Double Conductive Shielding, which blocks visible light and RFI disturbance and RFI.
** This is an outstanding internal, anti-mask PIR manufactured to European high-security standards. Offered at a special price to make way for a refreshed model **
Features:
* Double conductive shielding* Plug-in EOL unit (option)
* Digital QUAD zone logic
* Active IR Digital Anti-Masking
Specifications:
* Detection Method: Passive Infra Red* Detection Range: 24 x 2m
* Mounting Height: 1.8-2.4m
* Anti-Masking: Differentiates between true masking and environmental changes
* Power Input: 9-18v
* PET Capability: Small animal and human distinction
* Alarm Output: N.C 28V DC 0.2A max
* Tamper: Dual cover and wall tamper
* Compliance: Manufactured to EN50131-2-2 (Grade 3)
* Diemsnions: 140 x 70 x 52.3 mm
See below to download datasheet .pdf
