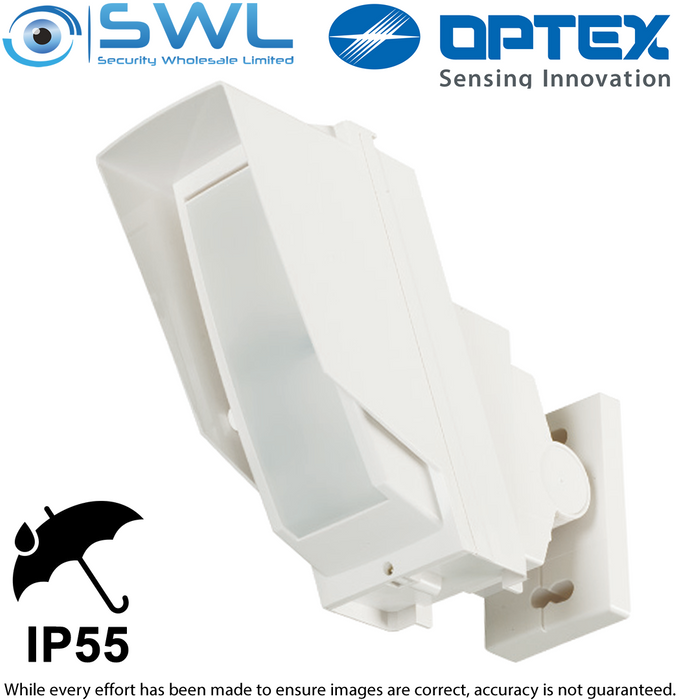

Optex HX-80N: Outdoor Long Range & Narrow High Mount PIR Detector - 24m x 2m
Stock Code:
28018
POA
Warranty Details:
1 Year Return to Base
Description
The HX series features superb 'Catch' performance. The most important element in reliable outdoor detectors is accuracy to distinguish a human from a pet. Optex's exclusive HX pyro element enables projection of an ideal detection pattern, providing more accurate detection of humans and less false alarms.
HX-80N Features:
* Pet tollerance* Intelligent and detection logic
* Dual signal processing circuit
– Summer night compensation logic
– Advanced temperature compensation logic
* Vegetation sway analysis logic
* Double conductive shielding
* Ideal detection area setting
– adjustable detection length
– spot area flexible masking
Specifications:
* Detection Method: Passive Infra Red* Max Coverage: 24m x 2m, 20 detection zones
* PIR Adjustment: 6.5, 10, 13, 18 & 24m
* Mounting Height 2.5m - 3m
* Power Input: 9-18V DC
* Alarm Output: Form C 28V DC 0.2A max
* Tamper: Open when cover opened
* 180° angle adjustable bracket / hood
* Weather Resistant: IP55
* Dimensions with Bracket & Hood: 93 (W) x 197.5 (H) x 286mm (D)
See brochure and manual below.
