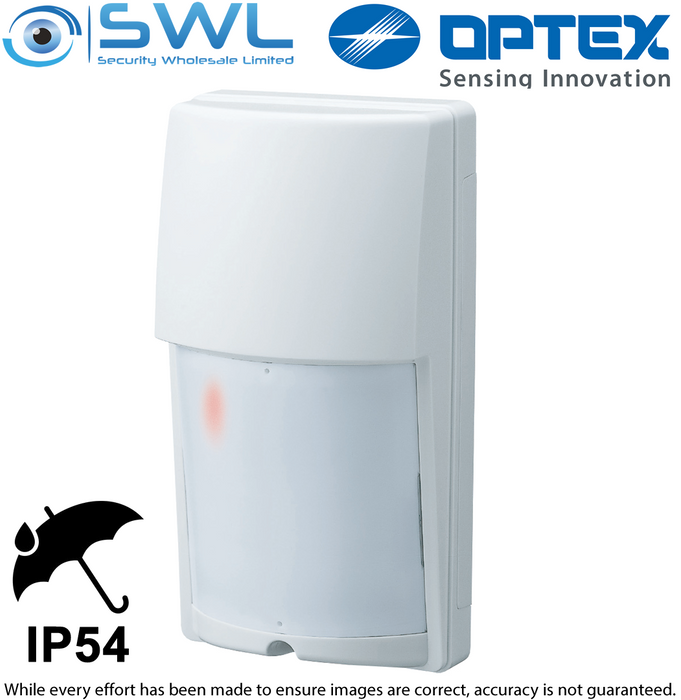

Optex LX-402: Outdoor Passive Infrared Detector IP54 -12m x 15m, 120°
Stock Code:
28010
POA
Warranty Details:
1 Year Return to Base
Description
Robust, weatherproof and specifically designed for short-range outdoor applications. With wide-angle and long-range options, advanced features such as sensitivity and range adjustment and a built-in light sensor providing day and night modes, the LX-402/802N series is highly versatile. An ingenious mirror assembly provides a pet alley configuration and Double Conductive Shielding ensures that the sensor is resistant to interference from foreign light sources such as the sun and car headlights.
Features:
* Double conductive shielding* Range 12 x 15m, 120°
* Selectable detection patterns (pet alley or multi-level)
* Area-masking strips (LX-402 only)
* Selectable pulse count (test or 2)
* Day & night modes
Specifications:
* Dectection Method: Passive Infra red* Mounting Height: Up to 2.5m
* Sensitivity Adjustment: 3 Settings
* Alarm Output: NO. NC. 28VDC 0.2A max
* Tamper: Opens with cover is open
* Power Supply: 10.8-13.2vDC
* Ingress Rating: IP54
* Dimensions: 74.8 x 141 x 53.5mm
See brochure and specifcation sheet below.
