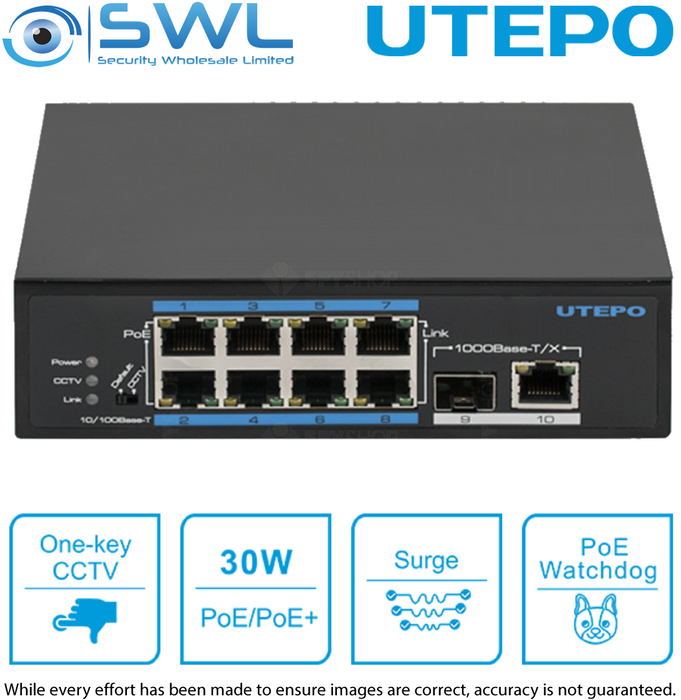

Utepo UTP7108E-POE: 8 x 10/100 PoE 120W + 1 x SFP, Watchdog, DIN
Description
The un-managed 8 ports switch provides one uplink ethernet port and one uplink optical port (both gigabit), 8*10/100Mbps PoE ports which supporting af/at PoE standard.
It supports one key CCTV mode:
1. Realize VLAN: 1~8 downlink PoE ports communicate with uplink ports only.
2. Extend the POE Ports transmission distance up to 250m (Max distance will depend on the camera and cable), but the downlink bandwidth only 10Mbps.
3. PoE watchdog (Detect POE device when it is frozen, reboot automatically). The product could be used in network security video surveillance, network project etc.
Key Features:
• Provide 8*10/100Base-T RJ45 PoE ports, 1*10/100/1000Base-T RJ45 and 1*1000Base-X SFP port.
• The 8 PoE ports support IEEE802.3 af/at standard and can provide up to 30W power per port.
• One key CCTV mode:
1. Realize VLAN: 1~8 downlink PoE ports communicate with uplink ports only
2. Extend the POE Ports transmission distance up to 250m (Max distance will depend on the camera and cable), but the downlink bandwidth only 10Mbps
3.PoE watchdog (Detect POE device when it is frozen, reboot automatically)
• 6kV surge protection, 8kV/15kV ESD protection.
• -30°C~65°C working temperature.
• Din-rail and wall-mount installation.
See below for datasheet .pdf
