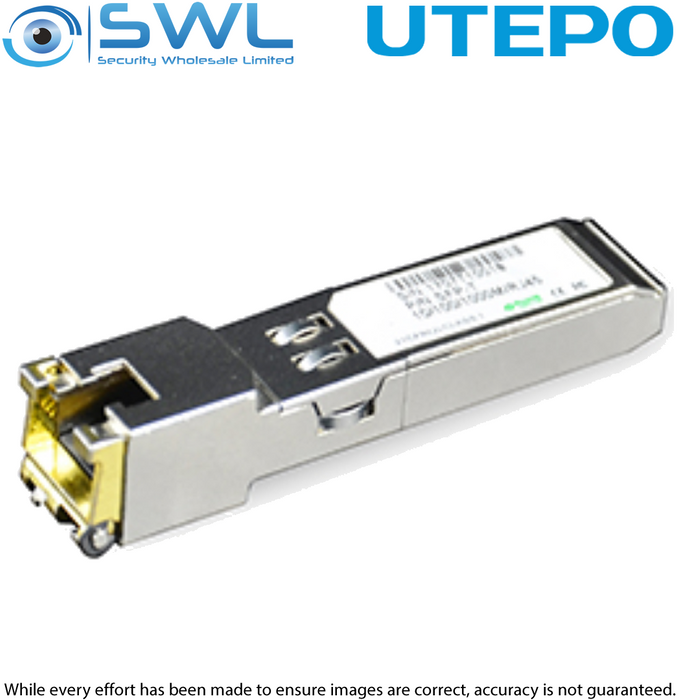

Utepo 1000BASE-T Copper SFP Transceiver
Description
The Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE802. 3 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.
Features:
• Up to 1.25Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Extended case temperature range (0? to +70?)
• Fully metallic enclosure for low EMI
• Low power dissipation (1.05 W typical)
• Compact RJ45 connector assembly
• Access to physical layer IC via 2-wire serial bus
• 1000 BASE-T operation in host systems with SERDES interface
See below to download datsheet .pdf
