ONETOP EM4700FS LSS: Weather Resistant Stainless GATE MAG LOCK, IP67, 410Kg
Stock Code:
58009
POA
Description

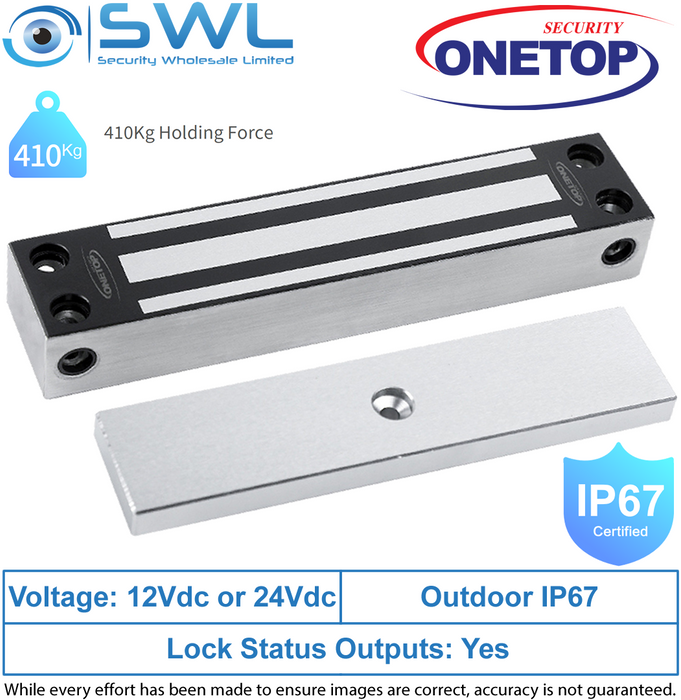

EM4700FS is a 12/24VDC IP67 rated weather resistant magnetic lock. Designed for outdoor hinged and sliding door applications, this is a zero residual magnetism Fail-Safe lock, with a holding force of up to 410Kg. EM4700FS has a dual fixing arrangement, Lock Status Sensor (LSS) and 3 year warranty.
Features:
* Lock Holding Force: 410Kg (EU: Grade 4+, 4000 N)* Surface Finish: Full weather resistant stainless steel. Grade 3 (EN1670, EN ISO 9227)
- Zinc plated for anti-corrosion
* Fail Safe: Power-to-lock
* Lock Status Sensor: COM/ NC/ NO: Max 30VDC; Max 0.3A
* Impact Energy: 100J
* Lock Body: 220mm x 46mm x 31.6mm
* Armature Plate: 185mm x 42mm x 12mm
* Durability/ reliability: Grade 9 ( > 1,000,000 cycles)
* Mounting: Surface - Front & side mount
* Residual magnetism: No residual magnetism by design
* Locking monitoring (LSS): In-built reed
* Electrical/ spark protection: Built-in metal-oxyde varistor (MOV)
* Power: 12/24 VDC, 390mA /200 mA
* Weight: 2.7Kg
* Environmental / Temperature: -40°C to +60°C
* Weather resistance: IP67, ICE 60529:2001
* Standards: RoHs, CE
* Compliant to: E 2014/30/EU, EN13637 (Chap.7) 2015, EN1670, EN ISO 9227, ASTM B 117
See specification sheet, manual and related L & Z bracket below.
