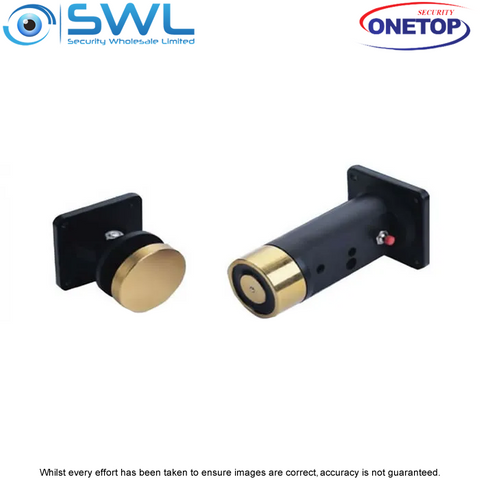

ONETOP R40-PCH-24: Extension Wall Mount Fire Door Holder 40kg 24VDC
Stock Code:
58142
POA
Description
R40-PCH-24: Extension Wall Mount Fire Door Holder 40kg, 24VDC Without Monitoring
The R40-PCH magnetic door holder is installed where doors are required to be held in the open position for general traffic.
These door holders have passed the BS Fire Rating of 4 hours. This device is 24v.
Specification
* Certification - CE and BS476 - Fire tested for 4 hours
* Lock Mode - Power to lock
* Lock Body Dimension - 60L x 108W x 60H (mm) - R40-PCH model.
* Lock Operating Voltage - 24VDC+/-10% - this model
* Lock Operating Current - 80mA/ 24VDC
* Lock Holding Force - 40Kg
* Weight - 1Kg
* Surface Finish - High quality plating for anti-corrosion
