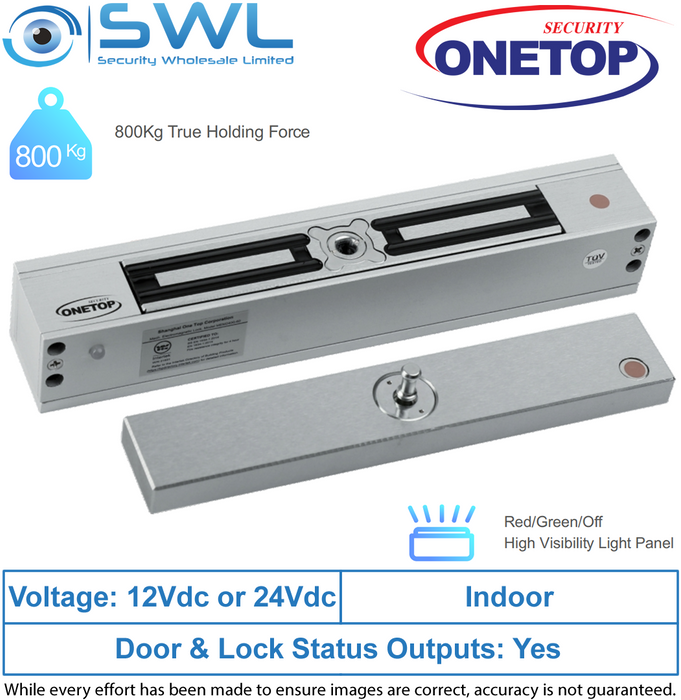

ONETOP MEM2400-60: Mechanical Mag Lock (LED) 12-24VDC, 800Kg
Stock Code:
58034
POA
Description
This MEM2400-60 is an innovative product which successfully incorporates mechanical designs an electromagnetic lock. This lock achieves holding forces up to 800Kg and impact resistance up to 100J whilst reducing physical lock size. The MEM2400-60 is capable of opening with up to 100Kg side pressure on the door and has the added security function of “Early Warning” alarm condition. The MEM2400-60 features Earl Warning (EW), Door Status Sensor (DSS) and Lock Status Sensor (LSS) signal outputs.
This lock solution is recommended for outward opening hinged doors <2400mm.
Features:
* Holding Force: Up to 800Kg* Surface Finish: Anodized Aluminium Housing.
- High quality plating for anti-corrosion
* Fail Safe: Power-to-lock
* Lock Dimensions: L 218mm x W 36mm, H 30mm
* Armature Dimensions: L 180 x W 30.5 x H 12.5mm
* Operating Voltage: 12/24VDC ±10%
* Operating Current: 12VDC 350mA, 24VDC 175mA
* Lock Status Output (LSS) NO/NC/COM, Max 30VDC, Max 0.3A
* Door Status Output (DSS) NO/COM, Max 30VDC; Max 0.3A
* Early Warning 1&2: COM/NO/NC Max 0.3A Max 50VDC
* Impact Resistance: 100J
* Weight: 1.7Kg
* Expected Usage Lifespan: Over 1 million cycles of operation
* Standards: CE, RoHS
* Compliance: EN 1634-1:2014, BS EN 1634-1:2014, BS 476-22:1987 (4 Hrs)
* Fire Resistance: Tested to 4 hours, as per AS/NZ 1905.1 – 1997 Part 1 Fire Resistant Doorsets
