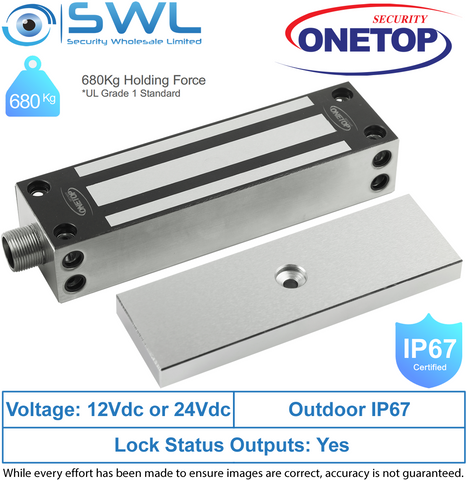

ONETOP EM5000G: Weather Res' Stainless Steel Maglock, 680Kg, Face or Side Mount

Stock Code:
58012
POA

Description

EM5000G: Weather Resistant Stainless Body Face/Side Mount Electromag Gatelock 12/24VDC, 680kg (7500 N). LSS Monitoring.

EM5000 series is a weather resistant electromagnetic lock with built-in varistor surge protection. It is designed for external gates and sliding door applications. EM5000 series is a Fail-Safe lock with holding force up to 680kg and Lock Status Sensor (LSS), it is designed for external gates, sliding doors and various types of indoor installations. The lock model is provided with dual fixing arrangement on the front or the side and comes with a 3 year warranty.

Features:

* Security/Holding Force: Grade 6+ (7500 N)
* Category of use: Grade 3 (High frequency - Public use)
* Durability/reliability: Grade 9 ( > 1000,000 cycles)
* Corrosion resistance/ humidity/ IP protection: Grade 3 (EN 1670, EN ISO 9227)
* Mounting: Surface - Universal
* Residual magnetism: 0% - By design (No push-pin, no electronic quick-off)
* Electrical/ spark protection: Built-in metal-oxyde varistor (MOV)
* Power: 12/24 VDC - 500/250 mA
* Environmental protection / IP Rating: IP67
* Dimensions: 224mm x 63.5mm x 45mm
* Armature plate 190mm x 61mm x 16mm
* Weight: ~5 kg
* Environmental / Temperature: -40°C to +60°C
