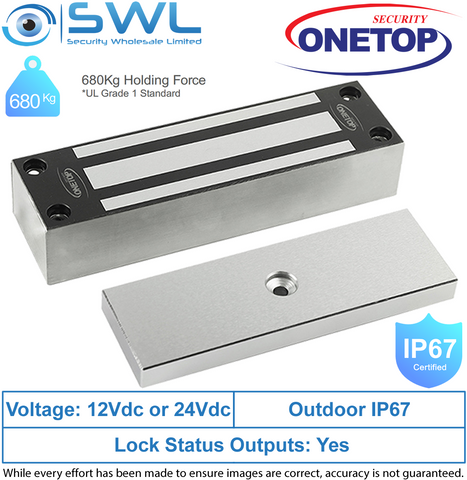

ONETOP EM5000F: Weather Res' Stainless Steel Maglock, 680Kg, Face Mount

Stock Code:
58011
POA

Description

EM5000 series is a weather resistant electromagnetic lock with built-in varistor surge protection. It is designed for external gates and sliding door applications. EM5000 series is a Fail-Safe lock with holding force up to 680kg and Lock Status Sensor (LSS), it is designed for external gates, sliding doors and various types of indoor installations. The lock model is provided with dual fixing arrangement on the front or the side and comes with a 3 year warranty.

Features:

* Security/Holding Force: Grade 6+ (7500 N)
* Category of use: Grade 3 (High frequency - Public use)
* Durability/reliability: Grade 9 ( > 1000,000 cycles)
* Corrosion resistance/humidity/IP protection: Grade 3 (EN 1670, EN ISO 9227)
* Mounting: Surface - Front mount
* Electrical/spark protection: Built-in metal-oxyde varistor (MOV)
* Power: 12/24 VDC - 500/250 mA
* LSS Monitoring.
* Environmental protection/ IP Rating: IP67
* Dimensions: 224mm x 63.5mm x 45mm
* Weight: ~5 kg
* Environmental / Temperature: -40°C to +60°C
* Compliances:
- CE 2014/30/EU
- EN 13637 (Chap.7) 2015
- EN 1670
- EN ISO 9227
- ASTM B 117
- RoHS/Reach

Stock Level:
In Stock
