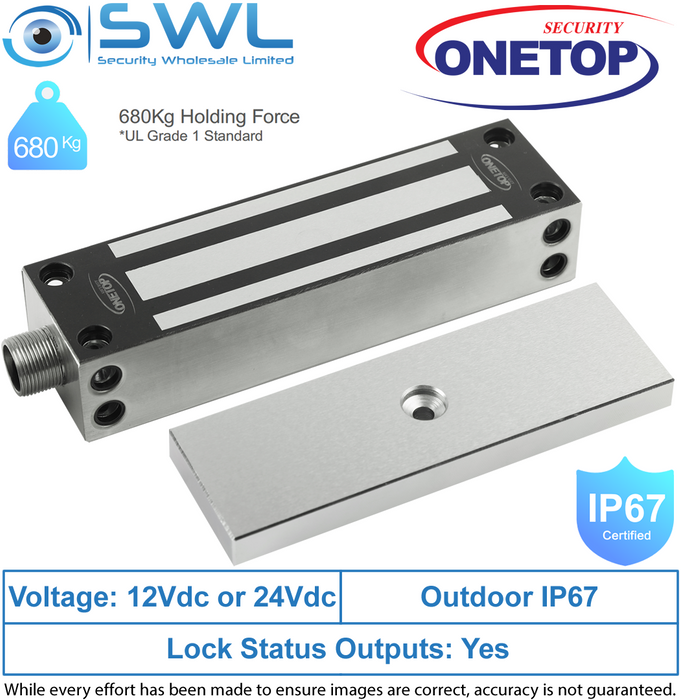

ONETOP EM5000G: Weather Res' Stainless Steel Maglock, FACE OR SIDE MOUNT 680Kg
Stock Code:
58012
POA
Description
This face or side-mount EM5000G weather resistant electromagnetic lock with built-in varistor surge protection is designed for external gates and sliding door applications. A Fail-Safe lock with holding force up to 680Kg, Lock Status Sensor (LSS), dual fixing arrangement on the front or the side, built in threaded conduit access and comes with a 3 year warranty.
Features
* Holding Force: Up to 680Kg* Surface Finish: Anodized Aluminium housing
- Zinc plated for anti-corrosion
* Fail Safe: Power-to-lock
* Dimensions: L 224 x W 63.5 x H 44.5mm
* Armature Plate: L 190 x W 61 x H 16mm
* Operating Voltage: 12VDC/ 24VDC +/- 15%
* Operating Current: 480mA @12VDC 240mA @ 24VDC
* Lock Status Output (LSS): NO/ NC/ COM, Max 24VDC; Max 1A
* Residual Magnetism: None
* Side Impact Energy: 200J
* Operating Temp: -10°C ~60°C
* Operating Humidity: 0~95% (non-condensing)
* Weight: 5.0Kg
* Weather Proof: IP67 solution
* Expected Usage Lifesapan: Over 1 million cycles of operation
* Standards: CE, RoHs
* Compliance: EN 1634-1:2014/ BS EN 1634-1:2014, 4 hours fire resistance.
