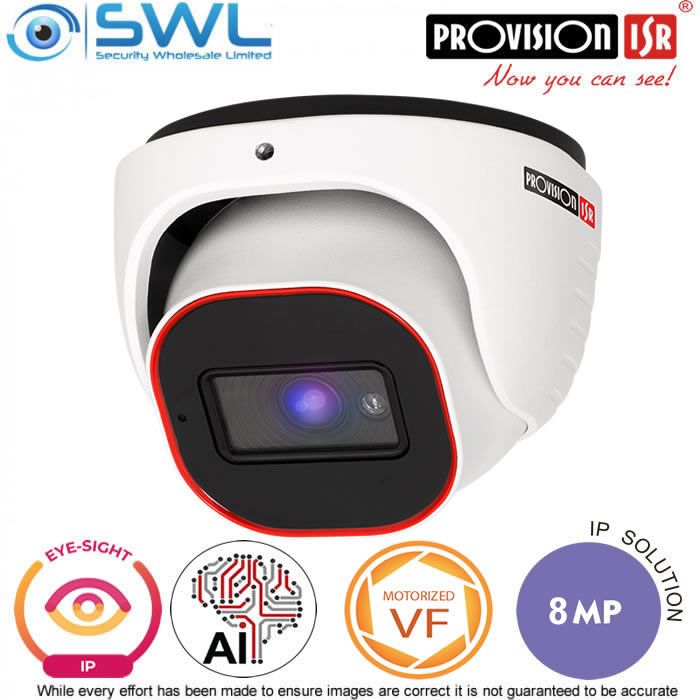

Provision-ISR DI-380IPEN-MVF-V3: Eye-Sight 8MP Turret WDR IR40M IP67 2.8-12mm
Description
Provision's DDA2 (Detect. Distinguish. Alert.) analytics allows the system to distinguish between human beings, 4-wheel vehicles, 2-wheel vehicles and provides detailed attribute analysis for accurate threat protection.
To ensure your DDA Analytic cameras are installed for optimum performance please refer to the how-to guide here: DDA Guide
* NDAA Compliant Camera
* Quantum IoT Nano agent by Check Point™
* Resolution - 1/2.8" CMOS (16:9) 8MP
* Lens / FOV - 2.8-12mm Motorised Lens with Auto Focus 96°- 32° (H)
* DORI - See Lens information on specification sheet
* Video Format - H.265S/H.264S*, H.265+/H.264+/H.265/H.264/MJPEG**
* Wide Dynamic - True WDR @ 120dB, BLC, HLC, ROI
* Min Illumination - 0.015lux( @F1.4, AGC On) 0 lux with IR on
* Max IR Distance - 40m - Actual (3 High Power IR LED)
* Image Orientation - Mirror/ Flip, Corridor Mode
* Analytic Features 1 - DDA2 Object Classification (Sterile Area, Line Crossing, Object Counting)
* Analytic Features 2 - AI Face Detection (10 Faces per frame), Camera Tampering
* Audio - Built-In Microphone + Audio Input + Audio Output
* Audio Compression - G.711A/ G711U
* Storage - Micro SD Card (Up to 256Gb)
* ONVIF - Profile T/S/G
* Power - DC12V/~750mA / PoE/~10W
* Ingress Rating - Water Proof: IP67. Metal camera.
Camera Accessories:
* IP66 Back Box: PR-JB14IP66 34072
* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB14 34081
* Ceiling Mount: PR-CB14 34080 and PR-B10EX extension sections 34062
For full specifications and accessories see .pdf below.
