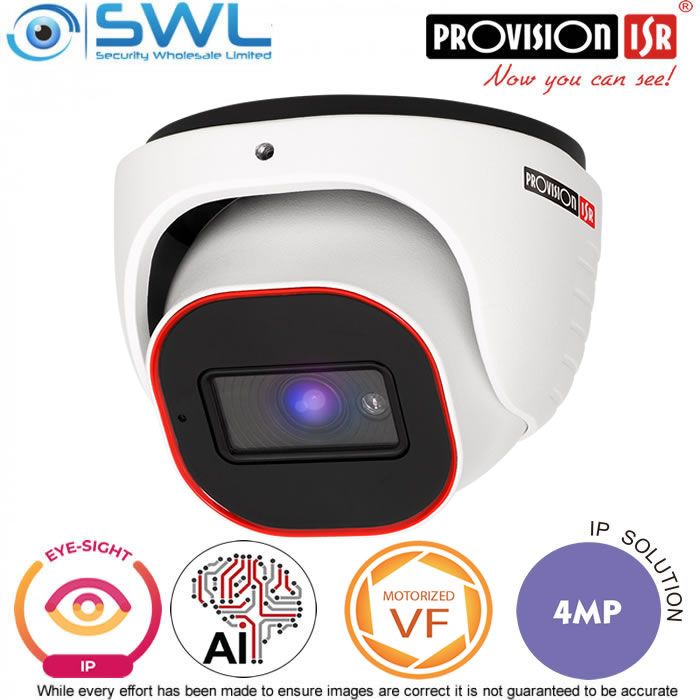

Provision-ISR DI-340IPEN-MVF: Eye-Sight 4MP Turret WDR IR40m IP67 2.8-12mm
Description
Provision's DDA2 (Detect. Distinguish. Alert.) analytics allows the system to distinguish between human beings, 4-wheel vehicles, 2-wheel vehicles and provides detailed attribute analysis for accurate threat protection. Latest version 4 specification.
To ensure your DDA2 Analytic cameras are installed for optimum performance please refer to the how-to guide here: DDA Guide
* NDAA Compliant Camera
* Quantum IoT Nano agent by Check Point™
* Resolution - 1/2.8" CMOS (16:9) 4MP
* Lens / FOV - 2.8-12mm Motorised Lens with Auto Focus 100°-29° (H)
* DORI - See Lens information on specification sheet
* True WDR (120dB), BLC, HLC, ROI
* Video Format - H.265S/H.264S*, H.265+/H.264+/H.265/H.264/MJPEG**
* Min Illumination - Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on
* Max IR Distance - 40m - Actual (3 High Power IR LED)
* Image Orientation - Mirror/ Flip, Corridor Mode
* Analytic Features 1 - DDA2 Advanced Object Classification (Sterile Area, Line Crossing, Object Counting),
* Analytic Features 2 - Face Detection (10 per frame), Heat Map, Camera tampering
* Audio - Bulit in Microphone + Audio input + Audio output
* Alarm - In + Out
* Storage - Micro SD Card (Up to 256Gb)
* ONVIF - Profile T/S/G
* Power - DC12V/~400mA / PoE/~6W
* Ingress Rating - Water Proof: IP67. Metal camera ball and shroud.
Camera Accessories:
* IP66 Back Box: PR-JB14IP66 34072
* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB14 34081
* Ceiling Mount: PR-CB14 34080 and PR-B10EX extension sections 34062
For full specifications and accessories see .pdf below.
