Trimec ES111 (110111-60M): 12/24VDC PTO W/Res A-Type Round Corner S/Steel

Stock Code:
60184
POA

Description

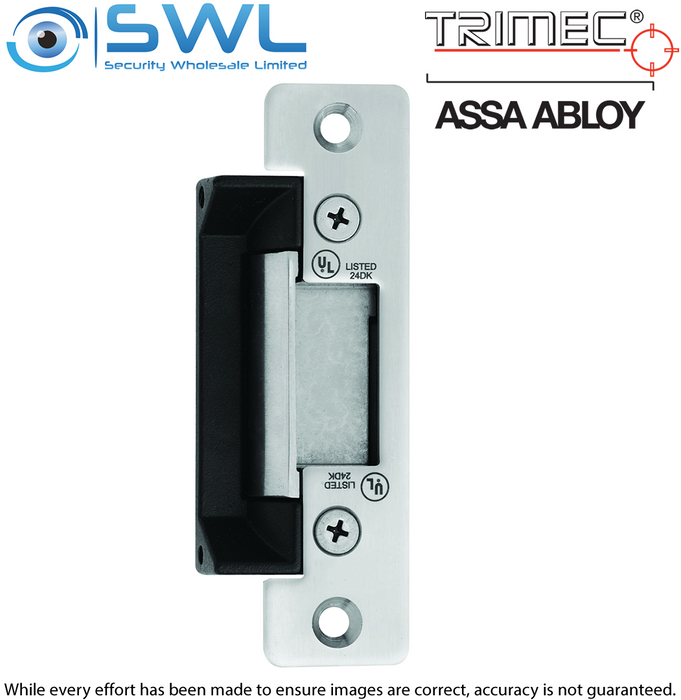

Trimec ES111 Strike (110111-60M): 12/24VDC PTO W/Res A-Type Round Corner S/Steel F/Plate
12V Fail Safe Weather Resistant Stainless Steel Face Plate (A)

ES110 Series (ES111)
The ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker. Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.

Extension lips are available to accommodate the installation of electric strikes on door frames with different thickness. The ES110 product range of patented electric strikes are suitable for use with all access control installations where flexibility, security and lower cost are required.

ES110 Specifications:
* Voltage - 12 or 24Vdc
* Current - 243 mA @ 12Vdc – 187mA @ 24Vdc
* Solenoid - Solenoids are rated for continuous use
* Monitoring - None
* Holding Force - 680kg Static Strength Rating
* Endurance Cycle - Tested to 1,000,000 operations
* Environment Operational temperature range - -20°C to + 60°C
* Weather resistant construction available (IP56)
* Body - Cast Aluminium Construction
* Keeper - Stainless Steel

Specification Statement
Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either "Power to Lock” or “Power to Open” on site. The electric strike should not consume current greater than 243mA @ 12Vdc or 187mA@ 24Vdc and have a solenoid suitable for continuous use. Certifications must include CE, C-tick and 4hr fire rating. The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.
