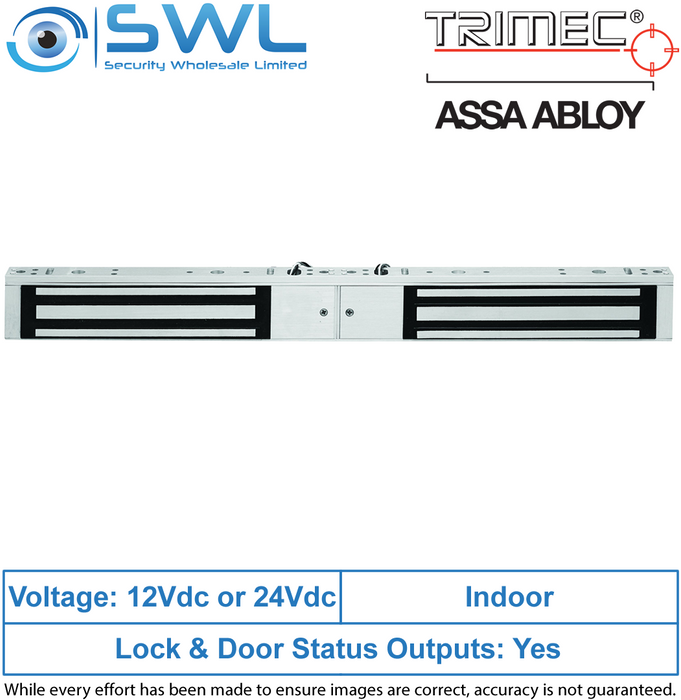

Trimec LEM230DMR: Z4 Double 'Mini' Maglock c/w Bond Sense & Reed Switch, 560Kg
Stock Code:
60124
POA
Description
The Double Series Electromagnetic Locks operate with holding forces up to 560Kg. Covering a range of applications these magnets are ideal for applications from access ways through to high use commercial swing doors. With fixing options including wood, Aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
Features:
* Easy installation: Suitable for both new and retrofit usage* High Holding Force: Refer to specification sheet
* Self-Alignment: Armature plate pivots to accommodate door drop
* Silent Operation: No humming or buzzing
* Instantaneous Release: Smart electronics eliminate residual magnetism.
Specifications:
* Holding Force: 500Kg - 560Kg each lock* Fail-Safe: Unlocks when power is removed
* Voltage: 12V DC/ 24V DC ±10%
* Current: 900mA @ 12V DC 450mA @ 24V DC
* Monitoring: Hall Effect / Bond sensing and Reed Switch
* Operating Temperature: -10 to 55 Degrees
* Operating Humidity: 0 - 95%
* Dimensions: (L) 476mm x (H) 48mm x (D) 27mm
Hall / Bond Monitoring:
Indicates the lock is powered and the armature plate is in position & magnetically bonded (it monitors if the magnet is locked).
Reed switch monitoring:
An integrated reed switch monitors the door position separately (it monitors the position of the door)
Standards and Compliance:
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
CE Approved, C-Tick Certified
