KNIGHT D75: Indoor SM Reed Switch, 35mm Gap, N/C, 6 Terminal, Tamper
Description
KNIGHT: D75 Surface Mount Reed Switch, 6 Terminal, Tamper.
Manufactured to BS EN50131-2-6
Security Grade 2 / Environmental Class II - Indoor Controlled

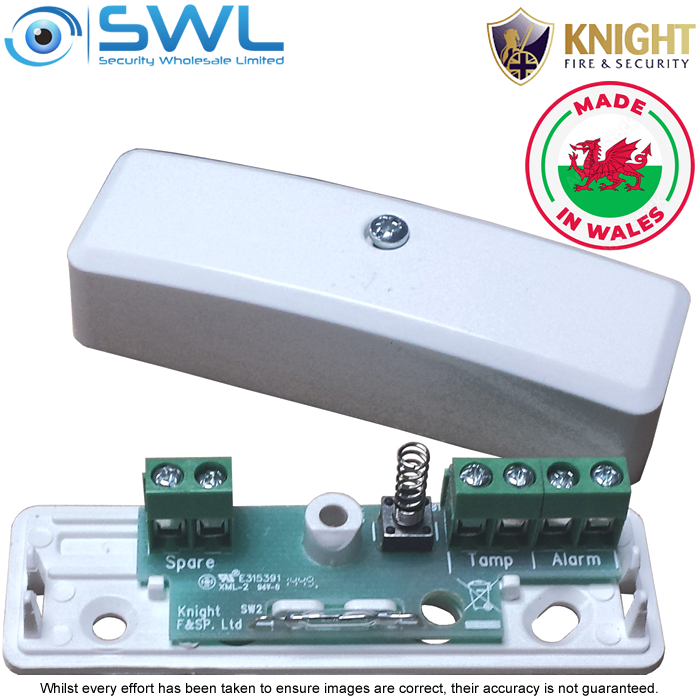

6 wire clamping screw down terminals are provided on the PCB – two for the switch, two for tamper and two unlinked spares.
The tamper on this contact is provided by a sprung microswitch, which will detect removal of the lid.
This contact is Normally Open (N/O)
The circuit through the contact is complete until the magnet is moved close by. With the magnet in close proximity, the circuit through the contact is broken.
Supplied with fitting screws.
Specification:
* Environmental Class: Grade 2, class II - Indoor Controlled
* Terminals: 6 Terminal
* Tamper: Microswitch
* Operating Gap: Up to 35mm
* Voltage Range: 15v DC Max
* Switching Current: 250mA Max DC
* Dimensions: 78mm x 24mm x 20mm.
See technical drawing below.
Integrators, please log in to SWL website to see installation document.
