Description

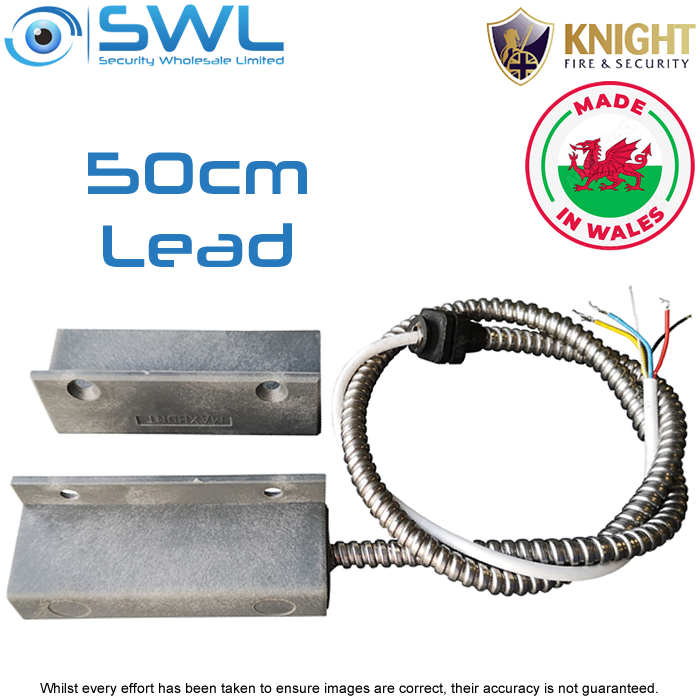

The B015E is a lightweight yet robust angle contact with sealed internals. A 50cm length of standard 4 core fly lead is provided for wiring. To improve security and durability, the fly lead is also enclosed in a stainless steel sleeve. The sleeve is terminated with a grommet for easy attachment to other equipment. The housings for this product are moulded from a specialised nylon ETP – resulting in a product that is light in weight with exceptional impact resistance.Compliant to EN 5013 / Grade 2 / Class III
If you didn't already know: Nylon provides a high amount of insulation and very high resistance to corrosion. Compared to aluminum, another material heavily used in reed switches - nylon is lighter, stronger and offers higher wear resistance.
Do it right, fit it once. Avoid corrosion-related falses.
Features:
* Robust Anti Corrosion ETP (Engineered Thermo Plastic)* Slimline Design: 25mm Height
* Operating Gap: Make - 65mm approx, Break 80mm approx
* Security Grade 2, Environmental Class III
* 50mm Armoured Sleeving: Stainless Steel
* Dimensions: 75(L) x 27(W) x 25(H) mm
* Complies to: EN50131-2-6:2008 <> PD6662:2017
***** Fixings are not provided with this product *****
* The armoured sleeving is 410 Stainless Steel, which is designed to resist corrosion in mild atmospheres, steam and some mild chemical environments.
WIRING: 4 Core
Reed Switch: Red/ Yellow
Tamper Loop: Black/ Blue
Fixings are not provided with this product.
Specification sheet is being approved.
