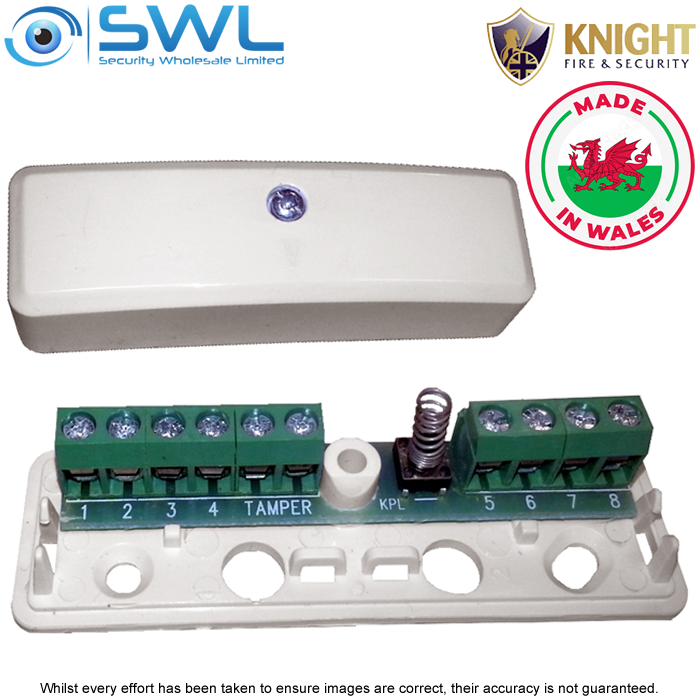

KNIGHT J81: 8 + 2 Terminal Tampered Junction Box
Stock Code:
26716
POA
Warranty Details:
1 Year Return to Base
Description
Hightened Security 8 Way Junction Box with Tamper Protection
Features:
* Material : White ABS* Terminals : 8 + 2 (see wiring info below)
* Max Voltage: 125V DC / 230V AC
* Max Current: 3A
* Tamper: TACT Spring Micro Switch Tamper
* Access: 2 End Knock-outs, 2 Back Holes, 2 Side knock-outs
* Connections: Wire clamping Terminal Block
* Temp Range: -40°C to 50°C
* EU Security Grade: 3
* EU Environmental Grade: II (weather proof)
* Standards: EN 50131-1:2006+A3:2020 | PD6662:2017
* Dimensions: 78mm x 24mm x 20mm
See specification sheet and wiring diagram below.
