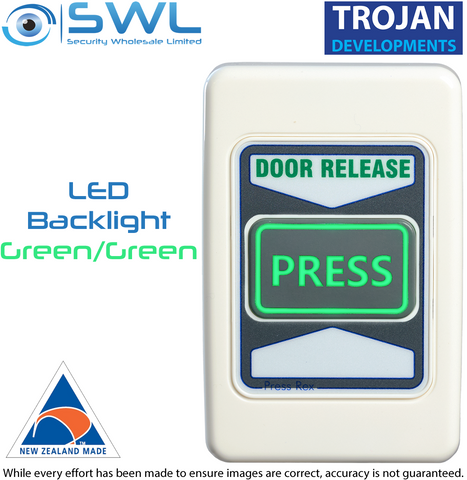

Trojan Press Rex Press To Exit Backlight Green-Green 12VDC / 24VDC
Stock Code:
57297
POA
Warranty Details:
1 Year Return to Base
Description

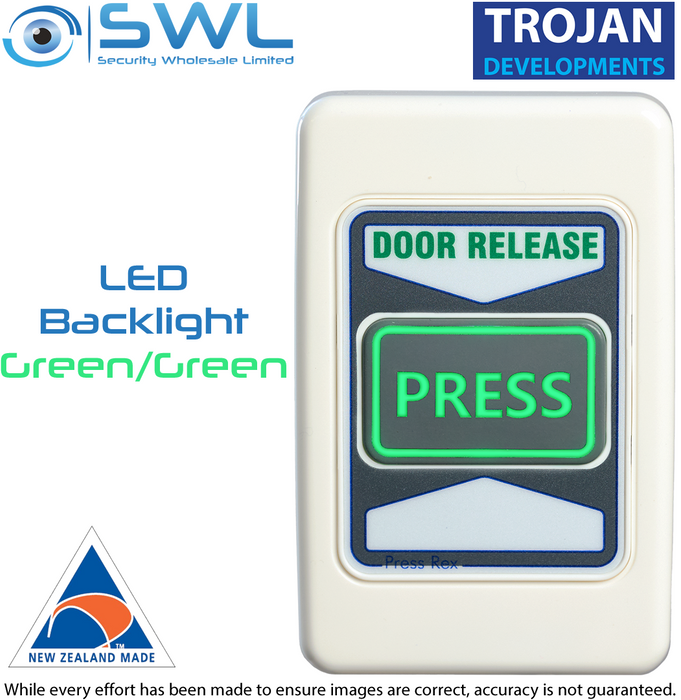

The Trojan Press Rex® (Press to Exit) has an illuminated silicone push button of a size that can be easily pressed and seen in areas of limited lighting. It also operates from 12 to 26VDC.
Features:
* Single gang profile fits a standard New Zealand and Australian electrical flush box (95mm H, 60mm W, 50mm D)* Power requirements: 10 to 30Vdc
* Current Draw – Standby: 61mA @ 13.6Vdc & 27.2Vdc
* Current Draw – Activated: 126mA @ 13.6Vdc & 27.2Vdc
* Two sets of Clean N/O and N/C outputs
* The contacts are rated at 2A, 30Vdc
* Spare looping terminal
* RCM, CE & RoHS certified
* Operating Humidity range: up to 93% ±3%, non-condensing
* Operating Temperature range: -10ºC to +70ºC
* Ingress Protection Rating: IP50 2 set of Clean N/O and N/C outputs
* The contacts are rated at 2A 30VDC
* Spare Looping terminal
* C-Tick, CE, RoHS Certified
Weatherproof Accessory:
* Clear Polycarb Protective Cover: WEC140 57250
