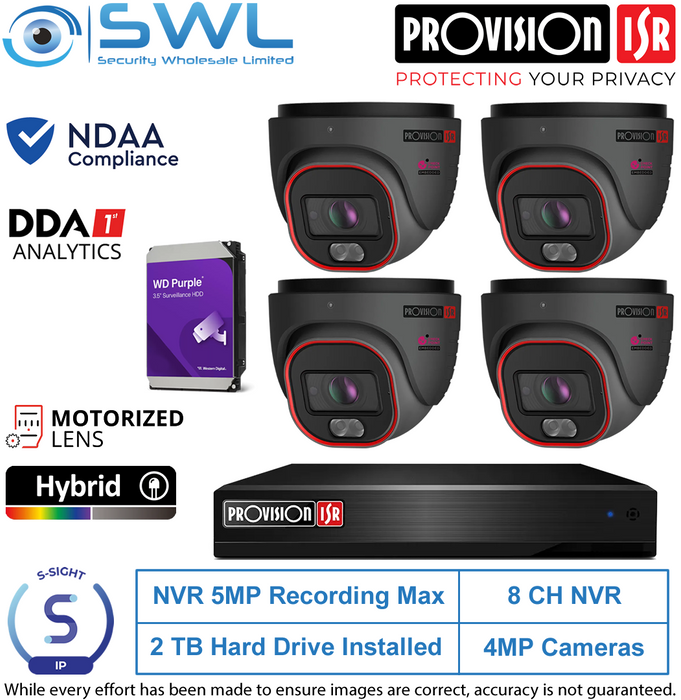

Provision-ISR 8CH NVR5 KIT: With 4x 4MP S-Sight Turrets GREY 2Tb HDD
Stock Code:
33608G
POA
Warranty Details:
3 Years Return to Base
Description
Kit Includes:
1 x Provision-ISR NVR5-8200PXN(MM) 8CH NVR 335164 x Provision-ISR DH-340IPSN-MVF-G:S-Sight 4MP GREY Turret Hybrid 33023/a>
1 x WD Purple Hard Drive 3.5" 2Tb Installed - 3 Year Warranty 46073
NVR Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant NVR
* IP Video Inputs: 8
* Onboard PoE: 8 Ports 9W average. Max budget, 72W
* Bandwidth: Input/ Output both @ 64Mbps
* Recording: 8CH @ 5MP real time
* Max Playback: 1CH @ 5MP, 4CH D1
* Video Compression: H.265+ / H.265/ H.265S/ H.264
* Display Outputs: 1x HDMI 1920x1080, 1x VGA output
* Storage: 1x SATA HDD bay. 2Tb installed for you.
* Analytic Support: DDA1 & DD2. LPR Capture Only (Eye-Sight). See specification sheet.
* Search Mode: DDA Object, Smart Search, LPR, Time-Slice, Time, Event.
* Alarms: None. Add Provision-ISR IO-1606 USB Input & Output Module: 33501
* Ethernet Port: 1. Independent 100Mbps port
* USB: 2x Ports
* ONVIF Support: Full Device Support (Profiles T/G, ONVIF Version 20.12)
* Power Supply: 48VDC/ 2.5A
* APP Support: Provision CAM2 for iOS/ Android
* Dimensions: W255 x D220 x H45mm
Monitor & UPS Options:
* Provision-ISR 24" Ultra-Thin Monitor: 50008* Provision-ISR 1000LI Compact 1000VA UPS 34572
* Provision-ISR 1000OL-RM Professional 1000VA UPS 34580
Camera Features:
* Embedded Check Point™ Quantum IoT Nano Agent* NDAA: Compliant Camera
* Resolution: 1/3" F1.6 CMOS (16:9) 4MP
* Lens / FOV: 2.8-12mm Motorized Vari-Focal (94°-31°)
* Video Format: H.265/ H.264
* Min Illumination: Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on
* D(O)RI: See specification sheet
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Image Orientation: Mirror/ Flip, Corridor Mode
* Max IR Distance: 40m Actual (IR), 30m White LED
* Analytics: DDA1 (Object Classification, Human & Vehicle) Line Crossing & Sterile Area
* Audio: Built-in Microphone + Audio input
* Storage: Micro SD Card (Up to 256Gb) 46039
* ONVIF: M/ T / S / G
* Power: DC12V/~600mA / PoE/~9W
* Ingress Rating: Weather Proof, IP67. Metal camera ball and shroud.
* Dimensions: Ø113mm × 99.6mm
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062
