Ajax Superior MultiTransmitter IO (4x4) Fibra
Stock Code:
83168
POA
Warranty Details:
Description

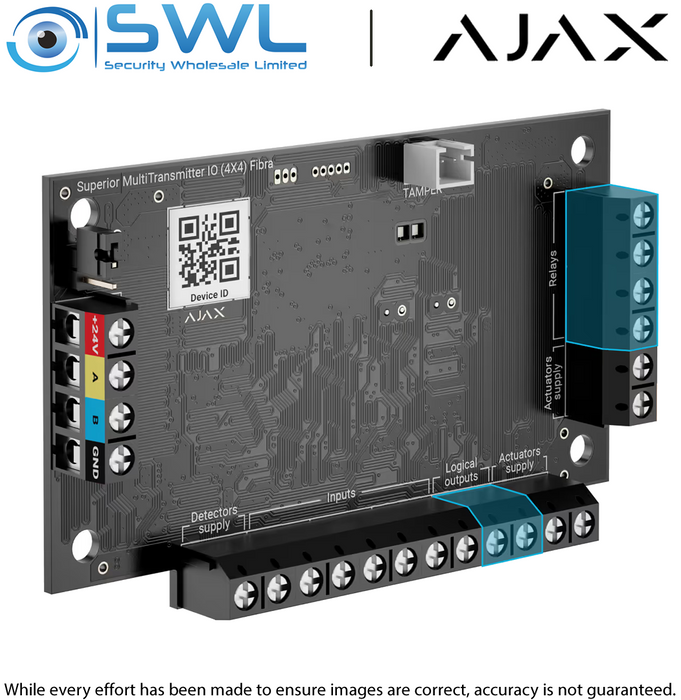

Ajax Superior MultiTransmitter IO Fibra provides 4×4 input/output control for professional security systems, enabling seamless integration with third-party devices into an Ajax system.
Upgrade outdated hardware and build a smart security system of any complexity, all powered by Ajax.
Features:
* 4 inputs to receive alarms from connected detectors* 4 outputs to control locks, blockers, sirens, and more
* Seamless integration with Ajax apps for remote control, automation, and instant notifications
* Installation in an Ajax casing: Case A (106), Case B (175), and Case D (430) – sold separately
* Connection Monitoring: Instant detection of wired connection loss for EOL-configured devices
* Supported Connection Types: NO, NC, EOL, 2EOL, 3EOL
* Input/Output Modes: Two operating modes for pulse or bistable devices
* Special Modes: KeyArm Zone and Roller Shutter modes
* Event Types Supported: Intrusion, Panic Button, Fire
* Firmware: Automatic updates
* Power Consumption: Up to 7.5W from the Fibra line
* Up to 2,000m over Fibra line to Hub or line-extending module
* Up to 400m wired connection between devices and the module
* Module: 12–28V?, up to 330mA at 24V? nominal
* Connected devices: 12V?, up to 500mA
* Operating Temperature: –10°C to +55°C
* Dimensions: 93 × 55 × 27 mm
* 46 g
This wired Fibra device is part of the Superior product line. Only accredited Ajax Systems partners can sell, install, and administer Superior products.
Contact us for more information.
