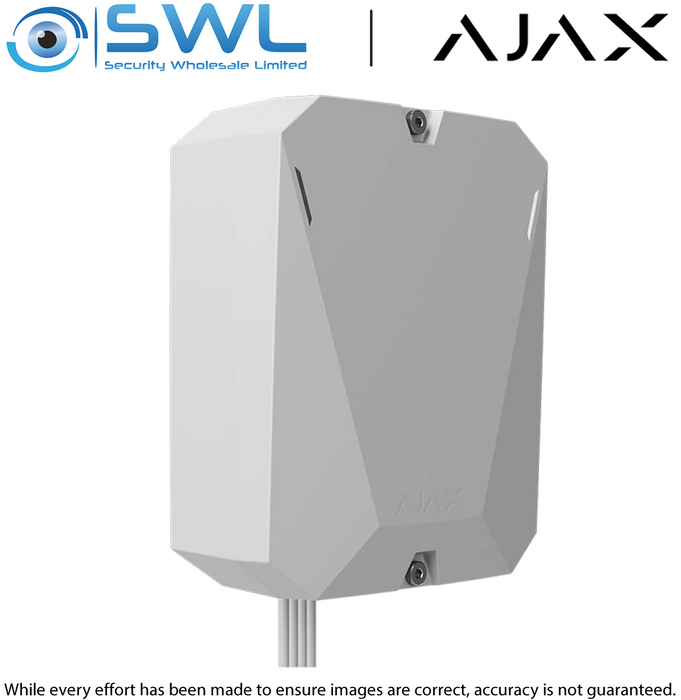

Ajax Superior MultiTransmitter Fibra - White
Make an Enquiry
Stock Code:
83164
POA
Warranty Details:

Description

Ajax Superior MultiTransmitter Fibra integrates third-party wired devices into your Ajax system.

Features:

* 18 wired zones for connecting third-party detectors
* Supports NO, NC, EOL, 2EOL, and 3EOL connection types
* Remote setup and configuration via the Ajax app
* 3 independent 12V power lines for flexible wiring
* Supports 9 device types for versatile integration
* Reliable Fibra communication up to 2,000m
* Up to 400m of cable length between devices and Multitransmitter Fibra
* Numerous event types to be choses for each connected device
* Supported detector contact types NO, NC, EOL, 2EOL and 3EOL
* Resistance of the EOL resistor 1 kO to 15 kO with total resistance 30kO
* Main power supply 100-240V
* Backup power 12 V DC
* 4 power outputs: 10-5-15V, up to 1 A for all detector power supply outputs
* Compatible only with the Ajax Hub Hybrid
* Operating temperature range from -10°C to +40°C
* Weight 798g

***** This wired Fibra device is part of the Superior product line. Only accredited Ajax Systems partners can sell, install, and administer Superior products. Contact us for more information. *****
