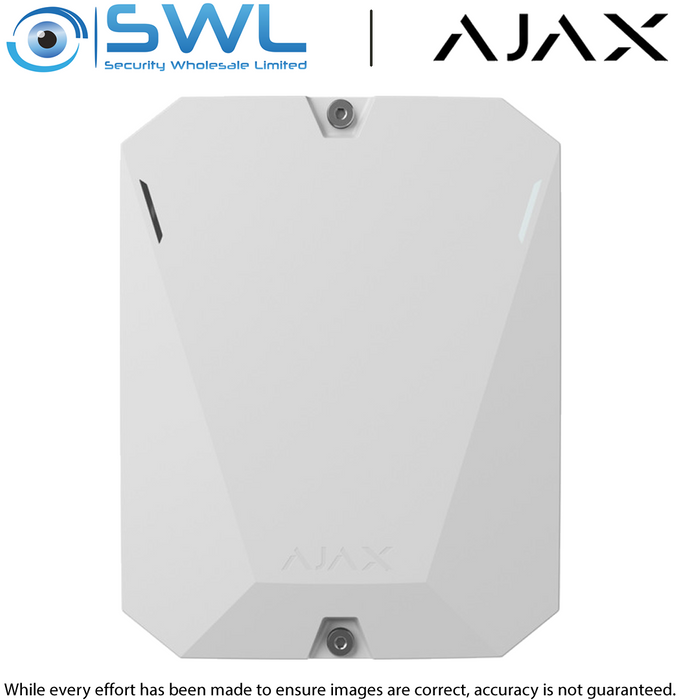

Ajax MultiTransmitter - White (9AU)
Make an Enquiry
Stock Code:
80446
POA
Warranty Details:

Description

Ajax MultiTransmitter integrates third-party wired detectors into the Ajax security ecosystem, upgrading existing alarm systems without full replacement. It supports multiple zones, tamper protection, and instant event notifications via the Ajax app. Ideal for retrofit installations, it delivers reliable communication, flexible configuration, and seamless system expansion.

Features:

* 18 wired zones for connecting third-party detectors
N* O, NC, EOL (NC), EOL (NO) support
* Remote setup of connected detectors in the app
* 12 V / 1 A power supply for connected detectors
* 18 alarm/tamper zones
* Supported detector contact types NO, NC (without R), EOL (NC with R), EOL (NO with R)
* Resistance of the EOL resistor 1 kO to 7.5 kO
* Main power supply 230/240V
* Backup power 12 V DC
* Supported battery type Battery with 4 or 7 A·h capacity (not included), dimensions 150 × 64 × 94 mm
* Detector power supply 12 V DC, up to 1 A for all detector power supply outputs
* Compatibility with all Ajax hubs, and range extenders
* Operating temperature range from -10° to +40°
* Weight 805g
* Dimensions: 196 × 238 × 100 mm
