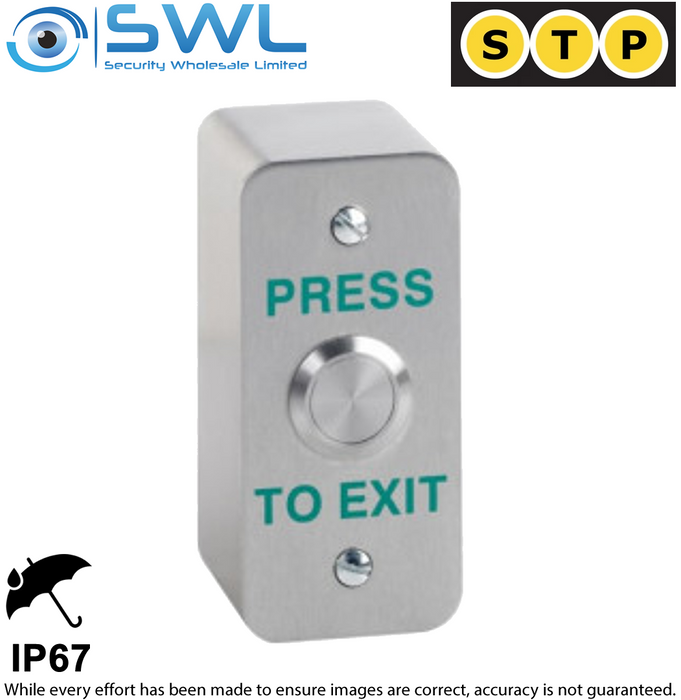

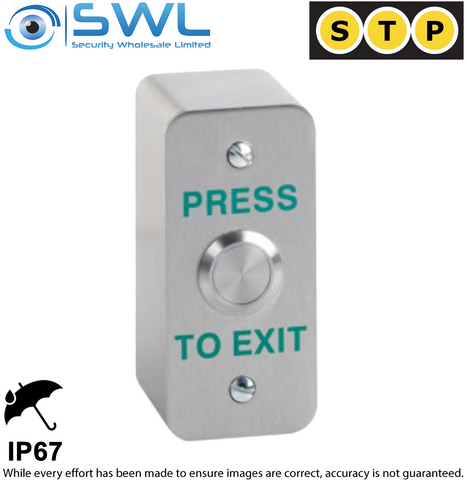

STP 19mm Stainless Steel Exit Button Single Pole, IP67
Stock Code:
56792
POA
Warranty Details:
1 Year Return to Base
Description
This double pole exit button has a small button making it almost flush to the plate. It offers good vandal resistance coupled with an attractive stainless steel appearance.
Features:
* Vandal resistant 19mm exit button* momentary contact Operation: Push button with Normally Open and Normally Closed contacts
* Switch rating: 2 Amps @ 12/24Vdc
* IP 67 rated from front onlySurface mount
* Max. Ratings : 5A@125/250 Vac
* Type of actuation: Momentary
* Contact arrangement: Normally Open and Normally Closed changeover contacts
* Operating travel: 2.7 mm
* Operating temp. Range: -20~+70°
* Operating life (mechanical): Over 1,000,000 operations
* Materials: Stainless steelSurface mount
