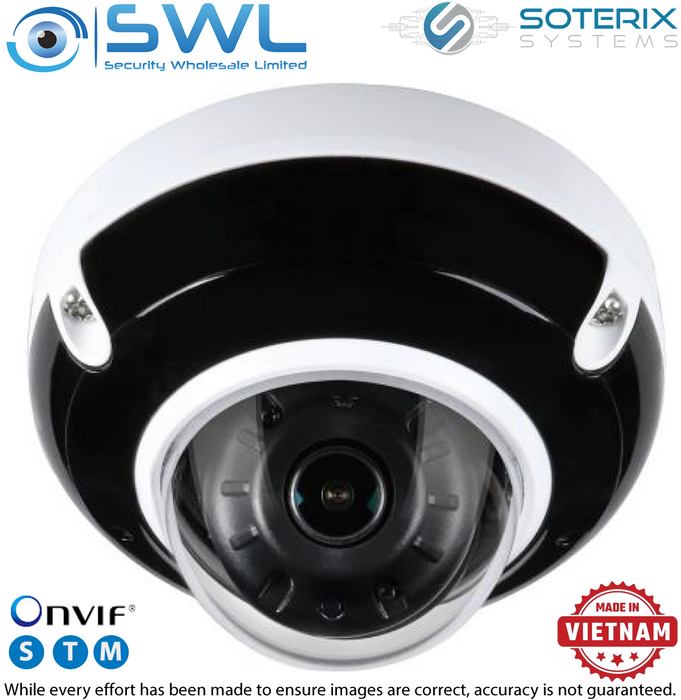

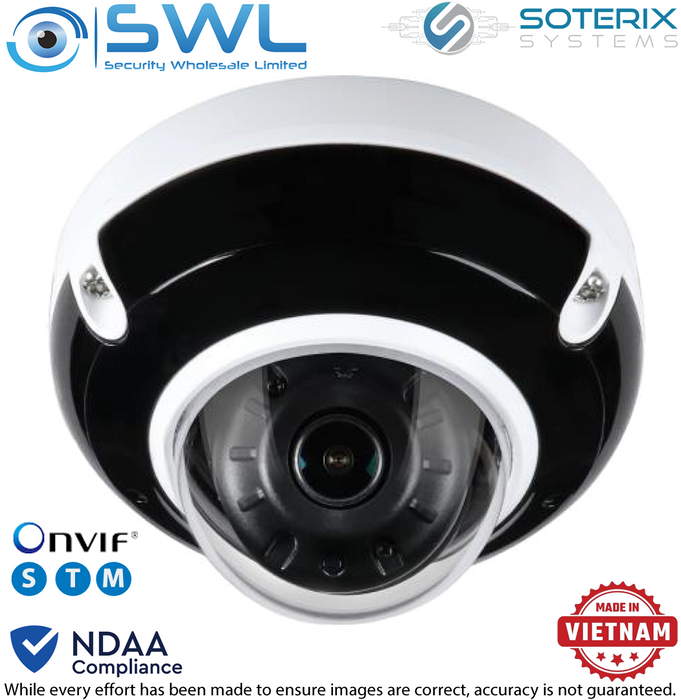

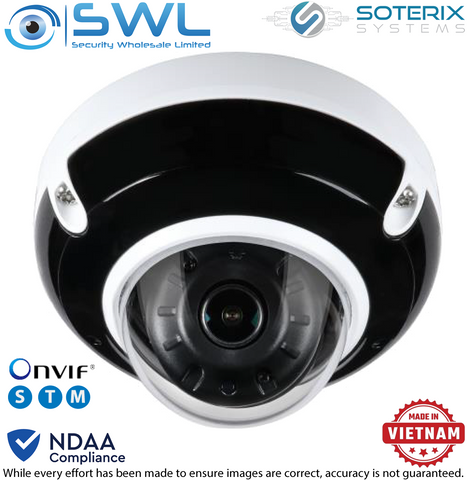

Soterix DC-5F-1 5Mp Dome, WDR. IR 30m, IP67, IK10 PoE, 2.8mm Fixed ONVIF
Stock Code:
41150
POA
Description
The Soterix DC-5F-1 providis a complete edge-based camera-cloud VMS solution, it brings all the advanced features of the Soterix server directly to the camera, enabling a fully distributed, server-free VMS deployment.
Features:
* AI-powered analytics Included:- Intrusion Detection
- Loitering & Dwelling Detection
- Line Crossing Monitoring
- Footfall Heatmaps
- Queue & Occupancy Monitoring
- Person Attributes
- Fire & Smoke Detection
* AI-powered analytics Addon Options: (requies a license)
- License Plate Recognition (LPR)
- Fire & Smoke Detection
- Person Slip & Fall Detection
- Aggression & Riot Detection
- Facial Recognition
* Image Sensor: 1/2.8" 5.17M CMOS
* Total Pixel 2592(H) X 1944(V)
* Lens Type Fixed 2.8mm F2.2
* Iris Type Auto Exposure
* FoV H : 97.7°, V : 73°
* Min. Illumination "Color : 0.08LuxBW : 0Lux with IR"
* IR Leds 2 x High Power LED
* IR Distance 30m
* Day and Night TDN(True day&Night)
* Shutter Speed Auto / Manual (1/30 ~ 1/32000 ), Anti-Flicker, Slow Shutter( 2X, 3X, 5X, 6X, 7.5X, 10X )
* WDR True WDR 120dB or above
* DNR 3D-DNR
* Privacy Mask 16 Programmable Zone
* Video Compression H.264, H.265, MJPEG
* Max Resolution 2592x1944
* Audio Compression G.711
* Edge Storage Micro SD, Micro SDHC, Micro SDXC
* Audio Input Built-in Mic
* Power Consumption DC12V Max 10.5W, PoE Max 12.5W
* Environmental Rating IP67 & IK10
* Dimension Ø105 x 72mm
Requires a streaming license for the Soterix Cloud VMS:
40100 Soterix LIC-CH-1Y: Cloud Streaming License 1 Channel, 1 Year
40105 Soterix LIC-CH-3Y: Cloud Streaming License 1 Channel, 3 Year
40110 Soterix LIC-CH-5Y: Cloud Streaming License 1 Channel, 5 Year
