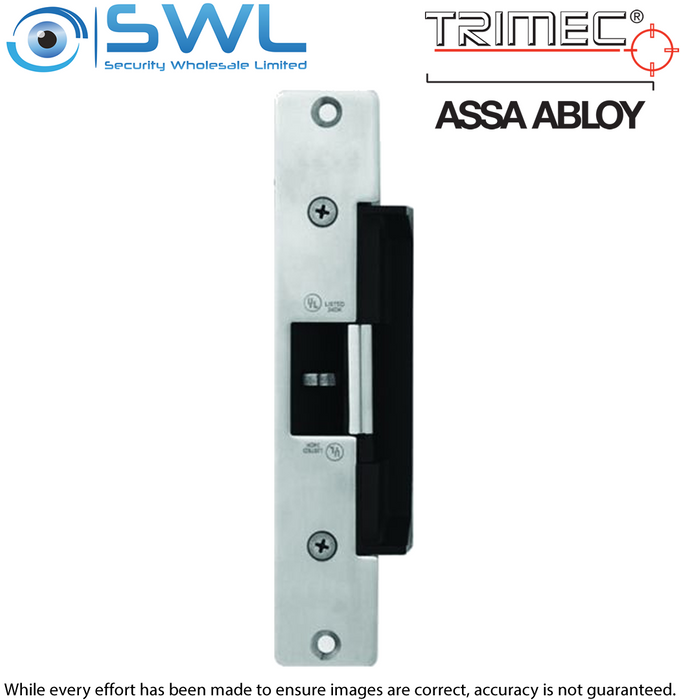

Trimec ES3201 (LT113201-030): ES3201 12Vdc PTL B-TYPE RND CNR S/STEEL F/PLATE -
Stock Code:
60189
POA
Description
********** Made to order, not returnable, 30 day lead time **********
The ES300 (non-monitored) and ES3000 (monitored) group of patented Burglar Resistant Strikes are designed for high-security applications and manufactured from solid stainless steel.
These long ANSI strikes offer a strong dependable and long-lasting electric strike solution and are suitable for use with any access control system using 90-degree swing doors.
These strikes are extremely flexible and can be changed from power-to-lock or power-to-open, mounted on the left or right hand side of the door and come as standard with a continuously rated coil, thus reducing the amount of stock needed to cover each application.
Features:
* 5 year guarantee* Preset power to lock/power to open field changeable on site
* high-security with tamper resistant to all known techniques
* extra security with 3 hardened locking pins
* cast stain resistant body
* low current consumption with max 175ma at 12 volts dc
* solenoid rated for continuous use
* flexible cable exit is interchangeable rear and side
* optional mounting kit to reduces installation time
* installation template is an easy to use stick-on template for faster installations
* tested to ul1034 (highest level)
* cycle tested to 1,000,000 cycles
* Door/Latch Monitor- 3amp changeover microswitch
* Holding strength- 1362Kg (3000lbs)
* Product weight- 487 gms (17.2 oz)
* Approved to UL1034 (highest level)
* Approved to BS5872
* Electromagnetic compatibility- EN500181 -1 Exempt
* 4 Hour Fire Rating
* C-Tick and CE Compliant
