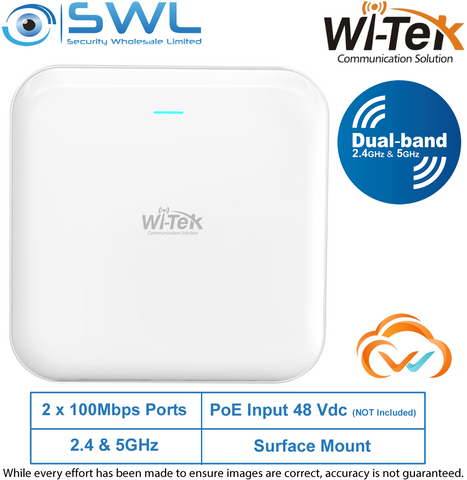

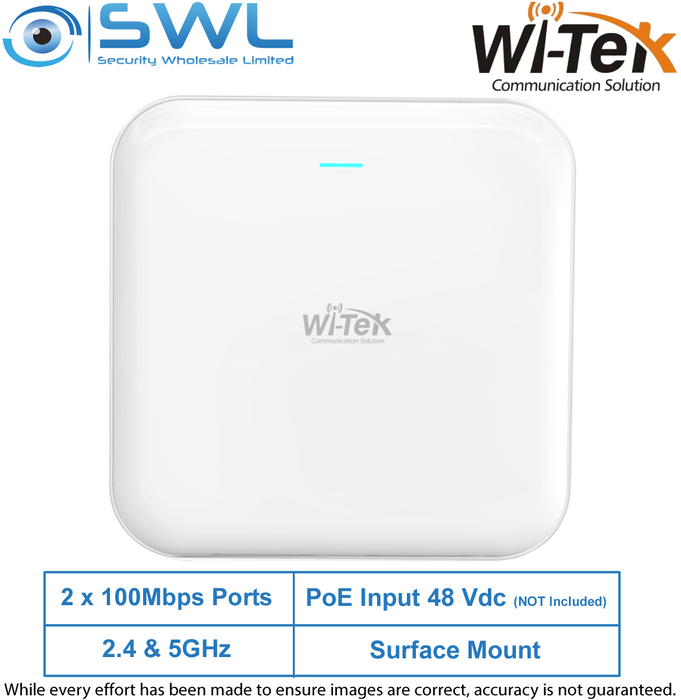

Wi-Tek WI-AP216 V2: 2.4G & 5.8G 1200Mbps Indoor Wireless Ceiling AP, Cloud
Stock Code:
48400
POA
Description
WI-Tek’s ceiling AP is suitable for indoor Wi-Fi coverage scenarios. The AP supports 802.3af PoE Input/ 12V DC IN, providing more flexible power supply options in different installation environments. Dual LAN port design expands the connections to external devices such as cameras and network devices. WI-AP216 also supports Cloud Management functions. Users can complete network-wide equipment configuration, remote management, operation and maintenance by using Witek's Central Management Module WI-AC105P, to greatly reduce labour and time costs for wireless network construction.
Features:
* MU-MIMO Technology* Fast Roaming
* Dual LAN Ports Design
* Multi-SSIDs
* Flexible Power Supply Methods
* Cloud Management:
Specifications V1:
* Memory: 64MB RAM, 8MB Flash* Interface: 2x 10/100Mbps Base-T Ethernet Ports (WAN port supports 802.3af PoE Input)
* Power Supply: 802.3af PoE Input or DC 12V/ 1A
* Power Consumption: 10W (Max)
* Standards: IEEE 802.11a/b/g/n/ac
* Max / Recommended Clients: 48 / 36
* Data Rates: 2.4GHz: up to 300Mbps, 5GHz: up to 867Mbps
* MIMO: 2.4GHz: 2 x 2, 5GHz: 2 x 2
* Antenna: 2.4GHz: 4.6dBi, 5GHz: 4dBi
* Frequency: 2.4GHz, 5GHz
* Channel Width: 2.4GHz: 20/40MHz, 5GHz: 20/40/80MHz
* Tx. Power: 23dBm
* Dimensions: 188 x 188 x 35mm
* Certification: CE, FCC, RoHS, UKCA, RCM
See specification sheet for further details.
