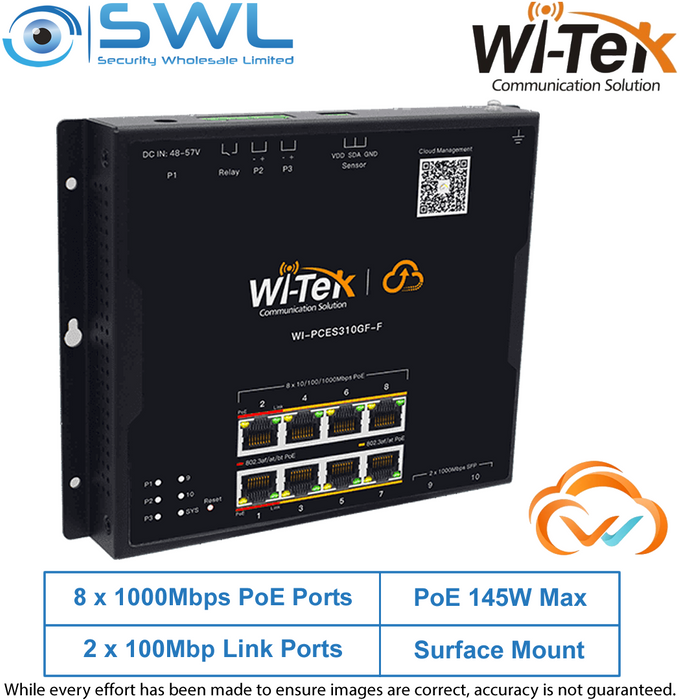

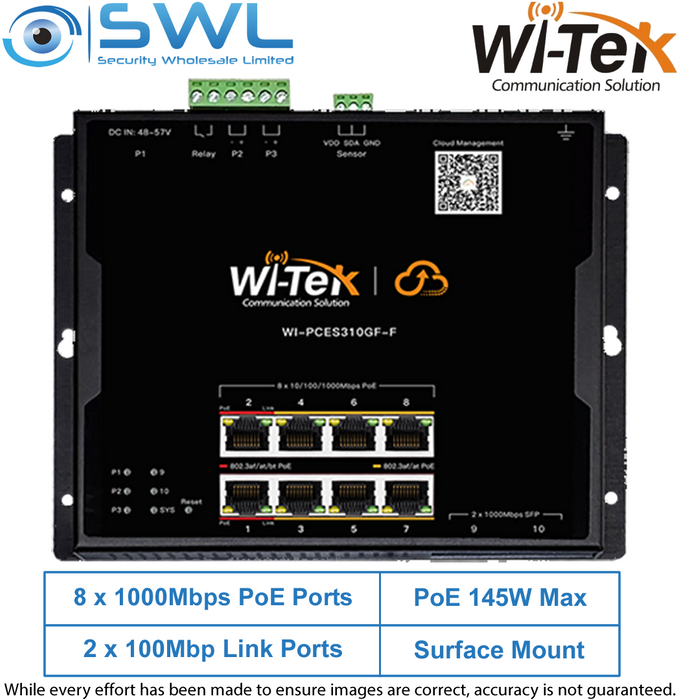

Wi-Tek WI-PCES310GF-F: 8x 1000Mbps PoE Ports + 2x 1000Mbps SFP, 145W, Industrial
Stock Code:
48295
POA
Warranty Details:
3 Years Return to Base
Description

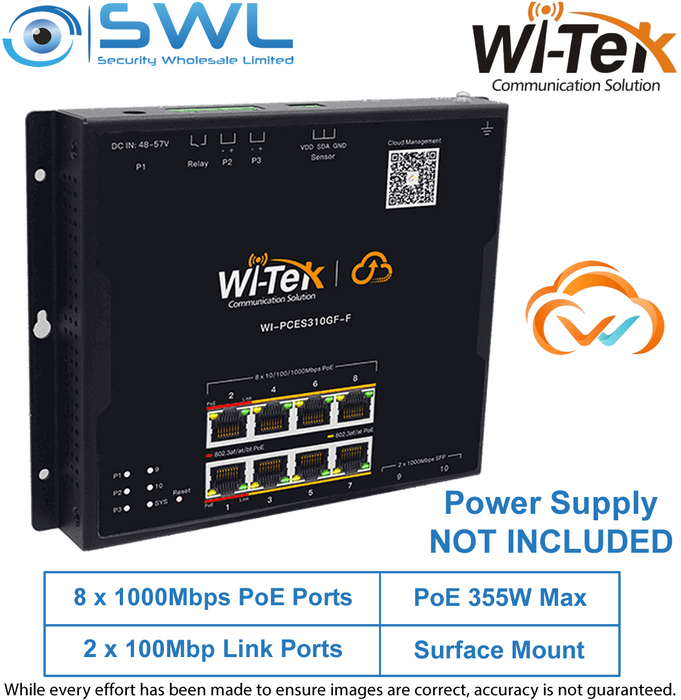

***** Power Supply Not Included, please see below for options. ******
Wi-Tek's Cloud Industrial Flat-type Easy Smart Switch offers 8x 1000Mbps PoE ports with 2 ports up to 90W of PoE power, providing flexible, high-performance full-gigabit access and uplink ports. Professional design provides a flexible, easy-to-use and reliable industrial network solution. The switch provides simple, safe and easy-to-use local WEB and remote management methods, supports smart deployment, abnormal alarm, ONVIF automatic identification of network cameras, etc.
Features:
* Wi-Tek Cloud Management* Temperature Reporting via Cloud
* Harsh Operating Temperatures: -40°C~75°C
* Intelligent Operation and Maintenance Alerts
V3 Specifications:
* Downlink Ports: 8 x 1000Mbps PoE Ports* Uplink Ports: 2 x SFP Ports
* PoE Standard: Ports 1-2: 802.3af/at/bt 45W, Ports 3-8: 802.3af/at 30W
* PoE Power: 145W Max delivery budget
* Standards & Protocols: IEEE 802.3af/ at, IEEE 802.3bt
* Switching Capacity: 20 Gbps
* Input Power: DC 48-57V/ 6A Max
* Power Consumption: Idle: 5W 100% Traffic Rate with PoE: 150W
* Fan Quantity: Fanless
* Certification: CE, FCC, RoHS, UKCA, RCM
* Dimensions: 180 x 140 x 25mm
* Installation: DIN-rail, Wall Mount, Magnetic Mount
Requires a power supply, Options:
* For a PoE budjet of 230W output 48296
* For a PoE budjet of 355W output 48718
