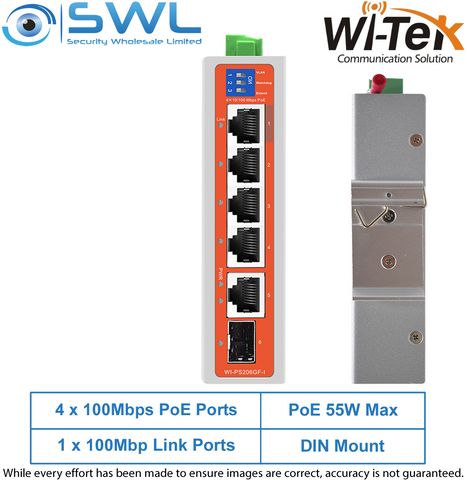

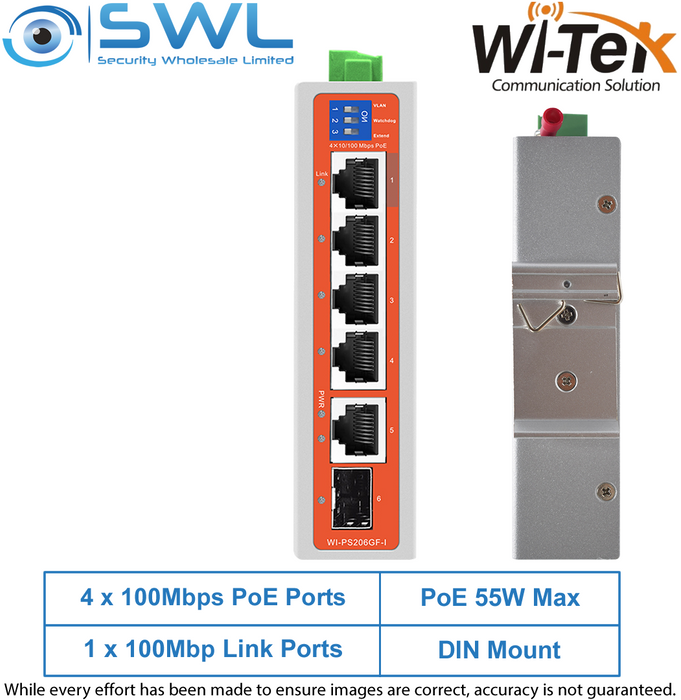

Wi-Tek WI-PS206GF-I V2:4x 100Mbps PoE Ports + 1x 1000Mbps RJ45+SFP, 55W Hardened
Stock Code:
48280
POA
Description
Wi-Tek hardened PoE switches provide 4 or 8x 100Mbps PoE ports, 1x 1000Mbps Ethernet port and 1x 1000Mbps SFP slot. Professional design provides a flexible, easy to use and reliable industrial network solution. Redundant power design with polarity reverse/over-current protection, guarantees a safe power supply. Solid shell, wide operation temperature from -30°C to 65°C design, ensures stable and reliable operation even in harsh environments.
Features:
* Redundant DC Power Input Design* Gigabit Uplink Interfaces Design
* Harsh Operating Temperatures: -30°C~65°C
* High Level Protection Design
* Supports 250m Extend mode, Port VLAN mode, PD Alive mode
V2 Specifications:
* Downlink Ports: 4 x 100Mbps PoE Ports* Uplink Ports: 1 x 1000Mbps RJ45 & 1000Mbps SFP Ports
* PoE Standard: Port 1: Hi-PoE 45W, Port 2-4: 802.3af/at 30W
* PoE Power: 55W Max total budget
* Standards & Protocols: IEEE 802.3af/ at, IEEE 802.3bt
* Switching Capacity: 4.8 Gbps
* Input Power: DC 48-54V 1.25A 65W
* Power Consumption: Idle - 5W
* Fan Quantity: Fanless
* Certification: CE, FCC, RoHS, UKCA, RCM
* Dimensions: 130 x 97 x 30mm
* Installation: Desktop, DIN-rail, Wall Mount.
DIP Switch Button:
* 1. Extend: The transmission distance of PoE Port can be up to 250m with 10Mbps
* 2. VLAN: Enable Port isolation, each PoE port just can send data to uplink port
* 3. PD Alive: All PoE ports can detect and reboot an offline compliant PoE powered device
