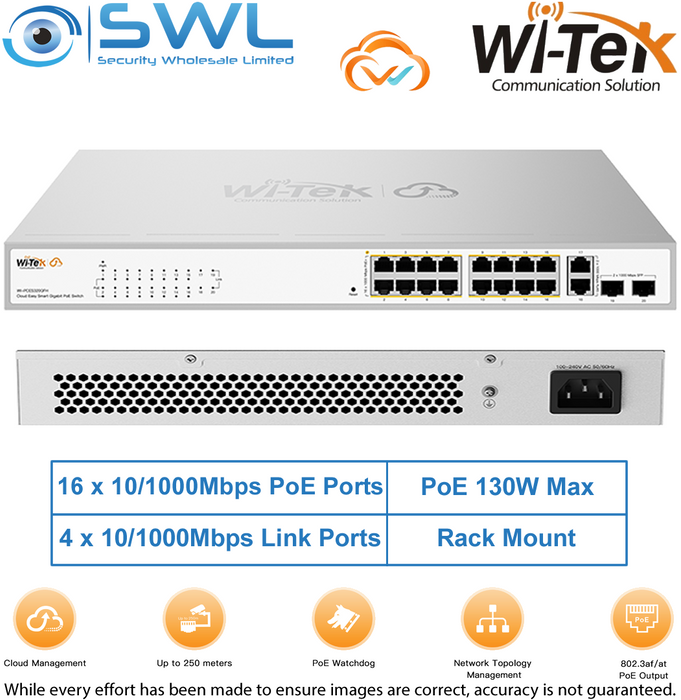

Wi-Tek WI-PCES320GFH: 16x 1000Mbps PoE Ports+ 2x1000Mbps SFP/RJ45, 130W, Cloud
Stock Code:
48095
POA
Description
Wi-Tek Cloud Easy Smart PoE switches provides simple, safe and easy-to-use local WEB and remote management methods; support smart deployment, abnormal alarm, ONVIF automatic identification of network cameras, automatic shutdown of loop ports, etc. This range comes with Downlink Ports supporting 1000Mbps with 'Combo' 1000Mbps Uplink Ports.
Features:
* Cloud Easy Smart PoE switch* Supports Wi-Tek Cloud management, mobile APP remote maintenance
* Smart DIP Mode: Extend mode, VLAN mode, PD Alive mode
* Supports various real-time alarms, even novices can troubleshoot
* Supports ONVIF protocols to automatically identify IP cameras
* Supports Automatic Loop Prevention
V3 Specifications:
* Downlink Ports: 16 x 1000Mbps PoE Ports* Uplink Ports: 2x 1000Mbps & 2x 1000Mbps SFP
* PoE Standard: Ports 1-16: 802.3af/at 30W
* PoE Power: 30W per port, 130W Max delivery budget
* Standards & Protocols: IEEE 802.3af, IEEE 802.3at
* Switching Capacity: 40 Gbps
* Input Power: 100-240 VAC 50/ 60Hz
* Power Consumption: Idle - 8W 100% Traffic Rate with PoE: 138W
* Fan Quantity: 2
* Certification: CE, FCC, RoHS, UKCA, RCM
* Installation: Desktop and Rack Mount
* Dimensions: 440 x 270.8 x 44mm
This switch does not support extended PoE transmission.
