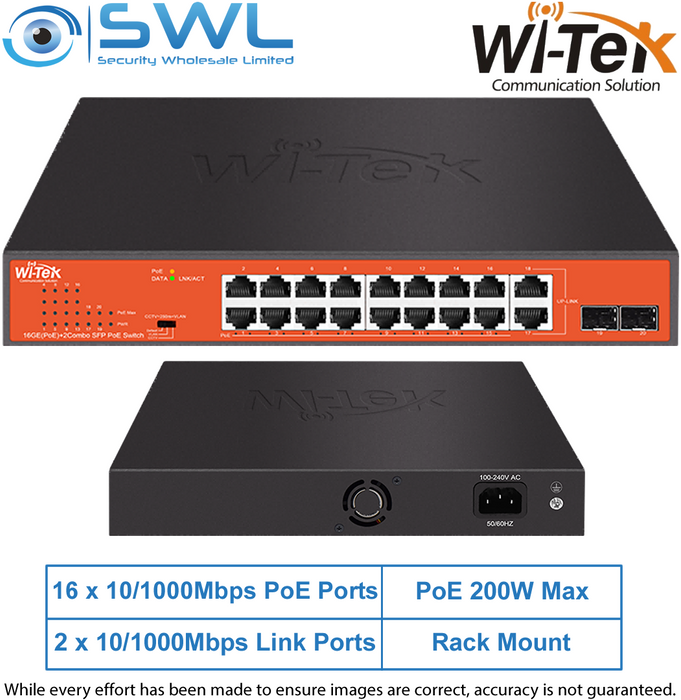

Wi-Tek WI-PS318GFH V2: 16x 1000Mbps PoE Ports + 2x 1000Mbps Combo, 185W
Stock Code:
47980
POA
Description
This Wi-Tek Economic 802.3af/at PoE Switch offers 16 ports in 1000Mbps speed. Break free from PoE distance limitations with extended PoE transmission. Wi-Tek provides a cost-effective PoE solution, empowering your CCTV, Access Point and other IP-based devices up to 250m away. Robust features such as Extend Mode, PoE Watchdog Function and Port Isolation, provide value for basic networking needs.
Features:
* CCTV Mode supports 250m long distance and port isolation function* PoE watchdog detects, reboots unresponsive PoE-powered devices
* Plug and play with no configuration required
Specifications:
* Downlink Ports: 16 x 1000Mbps PoE Ports* Uplink Ports: 1x 1000Mbps RJ45 Port, 1x 1000Mbps RJ45 Ports
* PoE Standard: 802.3 af/at
* PoE Power: 30W Max.for each port, 185W Max total budget
* Standards & Protocols: EEE 802.3, IEEE 802.3u, IEEE 802.3x
* Switching Capacity: 36 Gbps
* Input Power: 100-240 VAC 50/ 60Hz 5A max
* Power Consumption: Idle - 15W 100% Traffic Rate with PoE: 200W
* Certification: CE, FCC, RoHS, UKCA, RCM
* Dimensions: 281 x 185 x 44mm
DIP Switch Button:
* 1. Extend: Transmission distance of PoE Port can be up to 250m up to 10Mbps
* 2. VLAN: Enable Port isolation, each PoE port can just send data to uplink port
