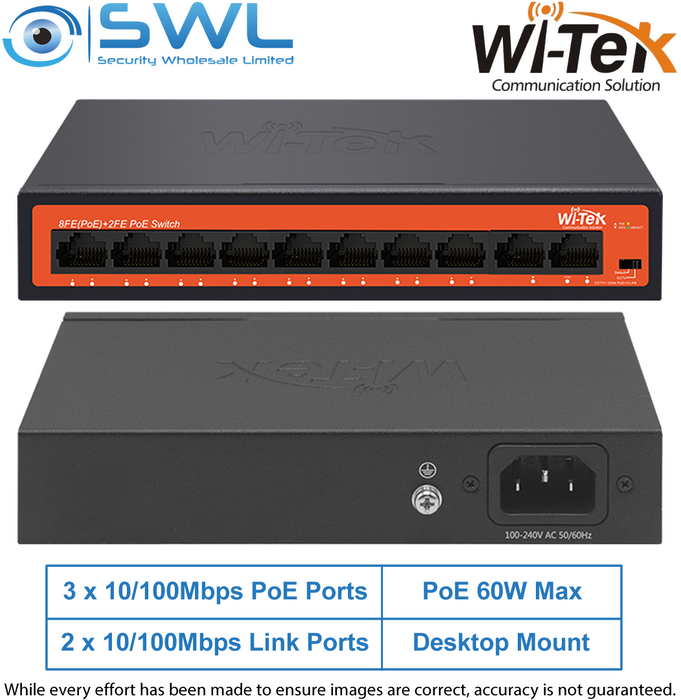

Wi-Tek WI-PS210H V3: 8x 10/100Mbps PoE Ports + 2x 10/100Mbps RJ45, 60W
Stock Code:
47955
POA
Description
This Wi-Tek Economic 802.3af/at PoE Switch offers 8 ports in 100Mbps speed. Break free from PoE distance limitations with extended PoE transmission. Wi-Tek provides a cost-effective PoE solution, empowering your CCTV, Access Point and other IP-based devices up to 250m away. Robust features such as Extend Mode, PoE Watchdog Function and Port Isolation, provide value for basic networking needs.
Features:
* PoE 250m Long Distance to Extend Network* Smart PoE Watchdog to Reboot Camera Automatically
* Port Isolation to Prevent Broadcast Storm
* Double Uplink to Eliminate the Bandwidth Limit
* DIP Data Optimisation
Specifications:
* Downlink Ports: 8 x 10/100Mbps PoE Ports* Uplink Ports: 2x 10/100Mbps RJ45 Ports
* PoE Standard: 802.3 af/at
* PoE Power: 30W Max.for each port, 60W Max total budget
* Standards & Protocols: IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
* Switching Capacity: 2Gbps
* Input Power: 100-240 VAC 50/60Hz 1.5A max
* Power Consumption: Idle: 5W 100% Traffic Rate with PoE: 65W
* Certification: CE, FCC, RoHS, UKCA, RCM
* Dimensions: 167 x 99 x 33mm
DIP Switch Button:
* 1. Extend: Transmission distance of PoE Port can be up to 250m up to 10Mbps
* 2. VLAN: Enable Port isolation, each PoE port can just send data to uplink port
