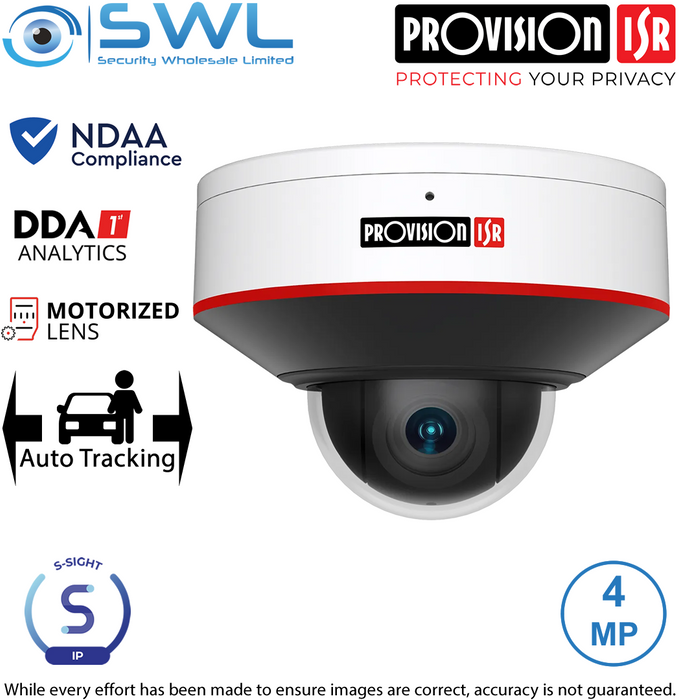

Provision-ISR Z1-3IPSN-4(IR): 4MP PTZ 3x Zoom DDA WDR IR20m IP67 IK10 3.18-7.4mm
Stock Code:
33651
POA
Description
The Z1-3IPSN-4(IR) AI IP PTZ is an NDAA-compliant PTZ with impressive video quality and features. The Z1 provides basic connectivity options and standard motor speed while keeping a compact and sleek design. It can be installed in indoor/ outdoor environments (soffit mount) and provides full compatibility with Provision-ISR's platforms.
Ideal for discreet residential use or in environments where a mini-PTZ will excel.
Features:
* Sensor: 1/2.7" CMOS* Resolution: 2688 × 1520 1-25/30FPS (4MP)
* Lens: 3.18mm (F1.6) – 7.42mm (F2.7)
* Zoom: Optical x3, Digital x8
* Compression: H.265 / H.264 / H.265+ / H.264+ / MJPEG
* Image Enhancement: DWDR/ HLC/ BLC/ 3D-DNR
* Day/ Night:True Day & Night – ICR
* IR Capability: Smart IR Distance ~ 20m
* Smart Tracking: YES. Based on DDA1 (person/ vehicle)
* Preset Speed: 80°/s/Sec
* Preset Accuracy: 0.5°
* Pan Range: 355°
* Tilt Range: 15°~165° (With Auto Flip)
* Preset Positions: 360
* Patterns/8 Cruises/Park Action/Scheduled Tasks
* Alarm In/Out:1
* Audio In/Out:1
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* ONVIF: Profiles T/S/G
* Power Supply: PoE (802.3af) / DC12V ±20%/ 2A
* Ingress Rating: Water Proof: IP67, Vandal Proof: IK10
* Weight: ~520g
* Dimensions: Ø116mm x 75mm
See specification sheet and manual below.
