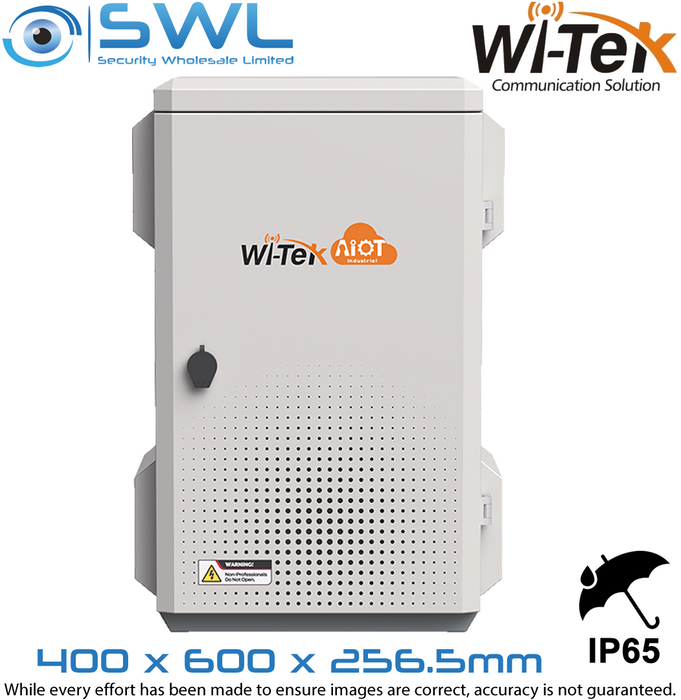

Wi-Tek WI-IOTBOX02 V3 Outdoor Cabinet 400x600x256.5mm, IP65, IK10, Fan, Tamper
Stock Code:
47875
POA
Description
Wi-Tek’s Smart IoT Box is an all-weather outdoor electrical equipment protection box designed for outdoor use in the outdoor environment. It has waterproof, dustproof, heat dissipation, anti-ultraviolet, anti-theft, anti-rust, acid and alkali corrosion, anti-electromagnetic interference (anti-lightning EMP), modular structure design in the box, electrical equipment can be installed vertically or horizontally according to the situation. Work with Wi-Tek Industrial Switch,4G Cat6 LTE CPE, Solar UPS PoE Switch, Industrial IoT M2M Gateway, and Mesh AP can fit your CCTV/WLAN Wi-Fi Coverage/Industrial IoT Application requirements. Flexible modular installation can decrease your project deployment cost.
Features:
* Overall Dimensions (W*H*D) 300*300*206.5mm* Inner Dimensions (W*H*D) 350*560*230mm
* Weight(kg) 12.6
* Thickness 1.2mm
* Material SUS430 Stainless Steel
* Color Light Grey + Grey
* Surface Treatment Electrostatic Spraying
* Installation Pole/Wall/Floor mounted
* Detachable Side Plate 2 (1 on each side panel)
* M25 Waterproof Connector 2 (1 on each side inner panel)
* Aluminum Alloy Chute 2 (on the rear panel)
* Bottom Cable Entry 1 (at the bottom)
* Air Intake Holes/
* Water Outlet Holes
* 4 (at the bottom, with rubber plugs)
* Microswitch 1 (on the upper right inside)
* Fan 1 (on the top inner panel)
* Protection IP65, IK10
