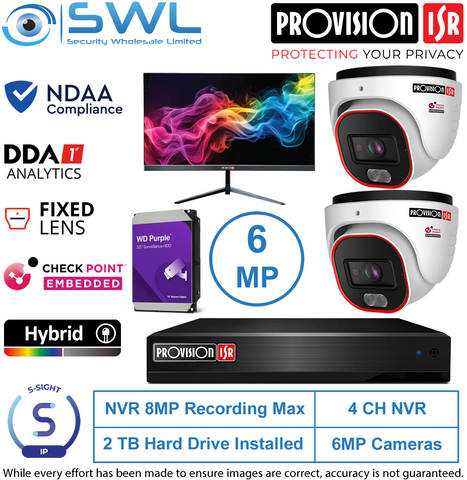

Provision-ISR 4CH NVR KIT: 2x 6MP S-Sight Turrets 2.8mm 2Tb HDD, 24" Monitor
Stock Code:
33585M
POA
Description
Kit Includes:
2 x Provision-ISR DH-360IPSN-28: S-Sight 6MP NDAA Hybrid Turrets 330271 x Provision-ISR NVR8-4100PN-V2: 4CH 8MP NVR 33506
1 x Hard Drive 3.5" 2Tb Installed - 46073
1 x Provision-ISR 24" Monitor - 50008
NVR Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant NVR
* IP Video Inputs: 4 Channels (PoE) over Network
* Onboard PoE: 4 Ports 12W average, Max Budget 48W
* Bandwidth: Incoming & Outgoing both @ 80Mbps
* Real-Time Recording: 4CH @ 8MP
* Storage: 1x SATA HDD bay. 2Tb installed for you.
* Video Output: HDMI – 4K, VGA
* Audio: Input 1 CH RCA (Linear) + IPC inputs
* Audio: Output 1 CH RCA + IPC Outputs
* Analytic Support: Up to 2 CH DDA1 or up to 2 CH Face Detector or combinations.
* Search Mode: DDA Object, Smart Search, LPR, Time-Slice, Time, Event
* Alarm In/ Out: Add Provision-ISR IO-1606 USB Input & Output Module: 33501
* ONVIF: Full device support Profiles T/G, ONVIF version 20.12
* Network: 1 x RJ-45: 1000/100/10Mbps self-adaptive Ethernet interface
• Power Supply: DC 48V/1.36A
* Dimensions: W300 x D249 x H45mm
UPS Options:
* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
Camera Features:
* Quantum IoT Nano agent by Check Point™* NDAA: Compliant Camera
* Sensor: 1/2.5" CMOS (16:9)
* Resolution: 3200×1800 20FPS (6MP)
* Lens: 2.8mm 103° (H)
* Day & Night: ICR + 24/7 Full-Colour Day Mode
* Image Enancement: True WDR (120dB), BLC, HLC, ROI
* Illumination: 20m (1 High-Power IR LED) 20m (1 High-Power White LED)
* Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
* Aanlytics (Human & Vehicle Object Recognition): DDA1 Sterile Area, Line Crossing
* SD Card: Event/ Schedule Record (Up to 256GB) 46039
* Audio: Built-in Microphone + Audio input
* ONVIF: Profiles M/ T/ S/ G
* Ingress Rating: Water Proof, IP67. Full metal case.
* Power: DC12V/~400mA / PoE/~7.5W
* Dimensions: Ø97× 82.6mm
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062
