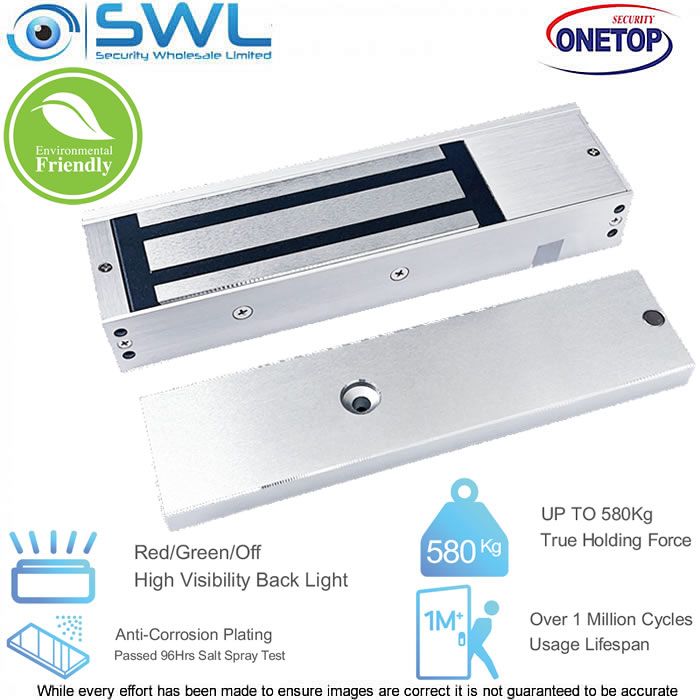

ONETOP EM5700 DSS/F: Environmentally Friendly Mag Lock 12/24VDC 580Kg
Stock Code:
58007
POA
Description
This EM5700 DSS/F single surface mount electromagnetic lock operates on 12 or 24VDC; has a patented high luminosity Light Panel, monitored Lock Status Sensor (LSS) and Door Status Sensor (DSS) outputs. This lock is Zinc plated to a high quality for corrosion resistance and will operate for over a million cycles in normal conditions. It is designed to unlock instantly when power is off without any residual magnetism. This new design has been tested to be fire rated for 3 hours and is classed to as environmentally friendly.
Environmentally Friendly Features:
* Non-epoxied potted electromagnet* Recyclable metal to make it truly environmentally green friendly
* Carbon neutral with everything recyclable
* Electromagnets are 100% fire rated, nil plastic combustible materials
Specifications:
* Holding Force 580Kg* Dimensions: (L) 268mm x (H) 73mm x (D) 41mm
* Fail Safe: Power- to-lock
* Surface Finish: Anodized Aluminum Housing.
- High Quality Plating for Anti-corrosion (96 Hrs Salt Spray Corrosion Tested)
* Operating Voltage: 12/24VDC ±10%
* Operating Current: 12VDC – 510mA or 24VDC – 270mA
* High Visibility Light :Shows Lock Status Red - Locked, Green Unlocked
* Lock Status: Output COM/NO/NC: Max 24VDC; Max 1A
* Door Status: Output COM/NO: Max 24VDC; Max 0.2A
* Operating Conditions: -10°C ~ 60°C, Humidity: 0 ~ 85% (non-condensing)
* Compliance: CE, RoHS
* Complies to: EU RoHS Directive 2011/65/E and Living Building Challenge 4.0
ONETOP also supports these standards in the following models: EM3500 DSS/F, EM3500D DSS/F, EM5700 DSS/F.
