Description

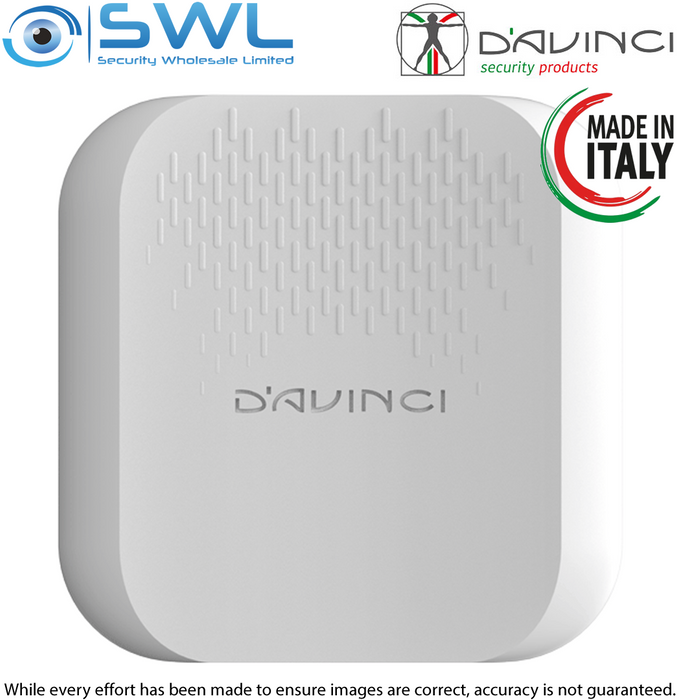

AUTOMA is a wireless repeater for the D’AVINCI system. It allows an increase of the radio range between devices (sensors, actuators, remote controls, etc.) and the control panel. Comes with an easy-fix mounting bracket for installation. Up to 5 repeaters can be installed.
AUTOMA has a range of up to 1500 meters (in free space) by connecting, via radio, directly to the Lisa Control panel collects the signals of the sensors in its vicinity, in this way doubles the flow in one direction. The communication is bidirectional (transmission/reception) with indication of confirmation of receipt and command. In the case of obstacles such as walls, objects, etc. the range is reduced.
The communication protocol, like the connections between all the components of the system, is 'GENIO', encrypted and protected from interception.
The configuration of the repeater is done through the D’AVINCI App, downloadable free from iOS and Android.
The repeater operates on two frequencies in the 915 MHz band, automatically and dynamically positioned on the one that is free or less interfered.
Features:
* Power supply: 230 V AC / 12 V DC Backup battery integrated: Li-Ion 3000 mAh* Manageable Wireless Devices: Up to 200
* Radio Range: Up to 1500m in open space
* Sirens: Max 6
* Protection: Antijammer & Tamper anti-tear and anti-opening
* Radio communication Protocol: Genio
* Operating Frequencies: 915.00 MHz
* Installation: Indoor
* Ingress Protection Class: IP40
* Operating Temperatures: From -10°C to +40°C
* Maximum Allowable Humidity: Up to 75%
* Dimensions: 170 x 165 x 50mm
