ONETOP SH2500: Shear Lock For 90° Swing Doors, PTL, Monitored,12/ 24VDC 250Kg
Stock Code:
58001
POA
Description
*** Warranty void if the included PCB is not installed in accordance with instructions ***
***All wires (DSS, LSS & Power) between the lock body and the PCB Board must be connected, whether the function will be used or not ***

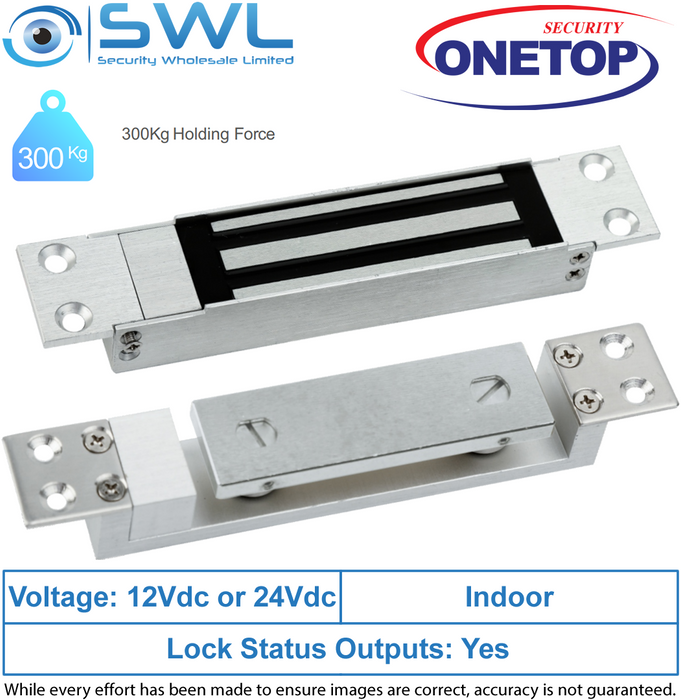

SH2500 shear locks are designed for 90° degree swing door applications. It is small, designed to be installed 'recessed' into the top of the door and into the door frame. This lock operates on 12VDC to 24VDC with no residual magnetism. A temporary high 1.2A rush current sucks up the plate then returns it to a normal 0.2A current position after 2 seconds. Ensure the gap in between the magnet and armature plate attracting surface is within 3mm so the lock can function.
Features:
* Lock Holding Force: 250Kg* Fail Safe: Power to lock
* Surface Finish: Anodized Aluminium housing
- Zinc plated for anti-corrosion (passed 96Hrs Salt spray test(
* Lock Body Dimension: L 165 x W 31 x H 21mm
* Armature Plate Dimension: L 86 x W 25.4 x H 6mm
* Lock Operating Voltage: 12/ 24VDC ±10%
* Lock Operating Current: 1200mA Rush 200mA hold 12VDC
* Lock Operating Current: 600mA Rush 100mA hold 24VDC
* Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
* Dynamic Impact Resistance: 60J
* Operating Temp: 10°C ~60°C
* Expected Usage Lifespan: Over 1 million cycles
* Compliance: UL, BS EN1634-1:2024, CE, RoHS. 4 Hrs Fire Resistance.
Installation Note
Post Install Check: The gap between the maglock and armature plate needs to be within 3mm to enable functionality.
