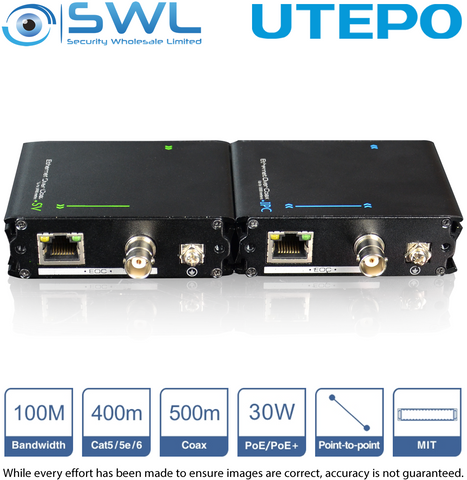

Utepo UTP7301EPOC: 1CH PoE Extender Coax or CAT Cable 400m Max 10W@ 200m -PAIR
Stock Code:
48620
POA
Description
Consisting of SV-Unit and IPC-Unit, UTP7301EPOC can transform Ethernet signal of IPC-Unit to carrier signal, and extend it to SV-Unit along with electric energy synchronously through coaxial cable or network cable. You can use 54V power adapter (Not Included) or PoE power supply to power up SV-Unit. It meets the requirement for long-distance transmission for Ethernet signal and power supply and is widely used in mixed wiring security surveillance projects of coaxial cable and network cable and network rebuilding project.
Features:
* Advanced transmission and power supply technoloy* Transmits Ethernet and power signals up to 500m through coaxial cable
* Transmits Ethernet and power signals up to 400m through network cable
* Ethernet delay less than 1ms; meet point to point application;
* Standards: IEEE802.3 10BASE-T, IEEE802.3u 100BASE- TX,IEEE802.3af/at;
* Protection: Excellent circuit isolation protection, superior product anti-thunder , anti-satic and anti-interference ability;
* Installation: Plug-and-play, no setting required.
* PSU Not Included
Specifications:
* Dimensions: 63.2mm × 82mm × 25mm* Material: Aluminium
* Power Supply: PoE or DC
* Voltage Range: DC 48V~57V
* Ethernet Ports: EPOC: 0--100Mbps Ethernet: 10/100Mbps
* PoE Power Method: Supports End-span and Mid-span
