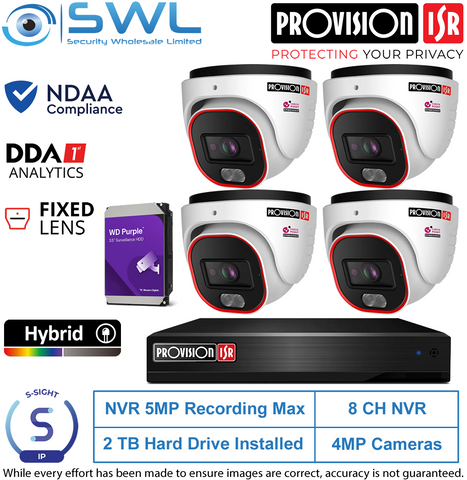

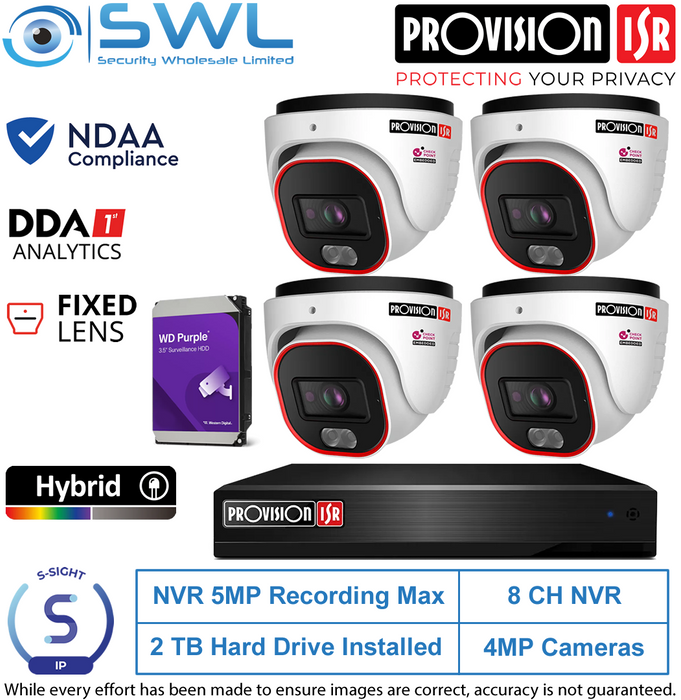

Provision-ISR 8CH NVR5 KIT: With 4x 4MP S-Sight Turrets 2.8mm, 2Tb HDD
Stock Code:
33608
POA
Description
Kit Includes:
1 x Provision-ISR NVR5-8200PXN(MM) 4CH NVR 335164 x Provision-ISR DH-340IPSN-28-V2 S-Sight: 33014
1 x WD Purple Hard Drive 3.5" 2Tb Installed - 3 Year Warranty 46073
NVR Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant NVR
* IP Video Inputs: 8
* Onboard PoE: 8 Ports 9W average. Max budget, 72W
* Bandwidth: Input/ Output both @ 64Mbps
* Recording: 8CH @ 5MP real time
* Max Playback: 1CH @ 5MP, 4CH D1
* Video Compression: H.265+ / H.265/ H.265S/ H.264
* Display Outputs: 1x HDMI 1920x1080, 1x VGA output
* Storage: 1x SATA HDD bay. 2Tb installed for you.
* Analytic Support: DDA1 & DD2. LPR Capture Only (Eye-Sight). See specification sheet.
* Search Mode: DDA Object, Smart Search, LPR, Time-Slice, Time, Event.
* Alarms: None. Add Provision-ISR IO-1606 USB Input & Output Module: 33501
* Ethernet Port: 1. Independent 100Mbps port
* USB: 2x Ports
* ONVIF Support: Full Device Support (Profiles T/G, ONVIF Version 20.12)
* Power Supply: 48VDC/ 2.5A
* APP Support: Provision CAM2 for iOS/ Android
* Dimensions: W255 x D220 x H45mm
Monitor & UPS Options:
* Provision-ISR 24" Ultra-Thin Monitor: 50008* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
Camera Features:
* Quantum IoT Nano agent by Check Point™* NDAA: Compliant Camera
* Sensor: 1/3" CMOS (16:9)
* Resolution: 2560 × 1440 25/30FPS (4MP)
* Lens: 2.8mm (93°) H
* D(O)RI: See specification sheet
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Image Orientation: Mirror/ Flip
* Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
* Illumination: 20m (1 High-Power IR LED) 20m (1 High-Power White LED)
* Analytics: DDA1 (Object Recognition) Sterile Area, Line Crossing
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* Audio: Built-in Microphone + Audio input
* ONVIF: Profiles M/ T/ S/ G
* Power: DC12V/ ~400mA/ PoE/ ~6W
* Ingress Rating: Water Proof, IP67
* Dimensions: Ø97mm × 82.6mm
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062
