Provision-ISR SH-4050A5N-5L(MM)-V2:4CH Hybrid DVR 4x AHD/CVI/TVI/SD + 2CH IP
Stock Code:
337451
POA
Description

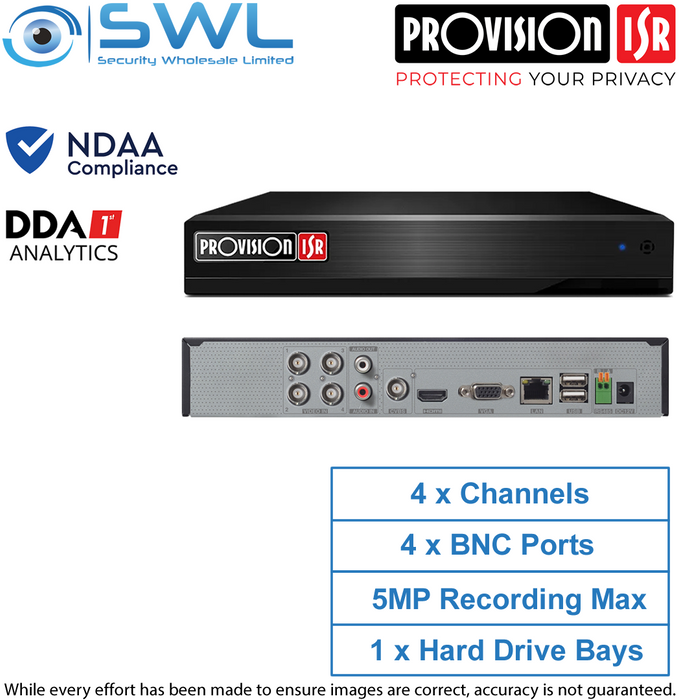

Provision-ISR SH-4050A5N-5L(MM) is a high-quality dynamic hybrid digital video recorder obtainable in an elegant mini metal case. This technology allows users to add 2x advanced IP cameras alongside analogue ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder supports Provision-ISR Standard Video Analytics (Pixel Based).
Features:
* Video Input Max Analogue: 4CH Analogue BNC + 2CH IP* Video Input Max IP: 6CH IP (over network) + 0CH BNC.
* Bandwidth: Incoming 16Mbps, Outgoing 40Mbps
* Recording HD Analogue
A) 3K/5MP Lite: Up to 10FPS Per Channel
B) 4MP Lite / 2MP: Up to 12/15FPS Per Channel
C) 2MP Lite / 1MP: Up to 25/30FPS Per Channel
D) CVBS: 960H: Up to 5/30FPS Per Channel
* Recording IP: 5MP and lower @ 25/30FPS Per Camera
* IP Analytics: DDA1 (Human & Vehicle Recognition) Tripwire and Sterile Area Rules
* Channel Playback: Local, 4CH Simultaneously. Remote: 4CH Simultaneously
* Video Output: HDMI , VGA,CVBS
* Audio Input: 1CH + IPC Inputs / Output: 1CH + IPC
* Alarms: Input IP Cameras only. Output: IP Cameras only
* Storage: 1x SATA HDD (Up to 6TB)
* Network: 1x RJ-45: 10/100Mbps
* PTZ Support: RS-485 / CoC / IP over Network
* Power Supply: DC12V/2A
* Dimensions: W255 x D220 x H43mm
Storage, Monitor & UPS Options:
* 1Tb 46072* 2Tb 46073
* 4Tb 46075
* 6Tb 460751 Max
* Provision-ISR 24" Ultra-Thin Monitor: 50008
* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
