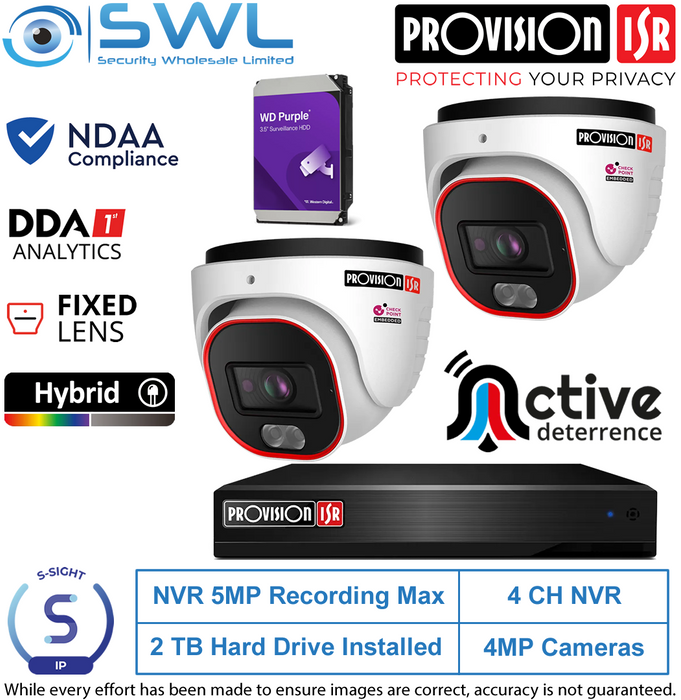

Provision-ISR 4CH NVR5 KIT: With 2x 4MP S-Sight 'Active' Turrets 2.8mm, 2Tb HDD
Stock Code:
33607
POA
Description
Kit Includes:
1 x Provision-ISR NVR5-4100PXN(MM) 4CH NVR 335042 x Provision-ISR DH-340ADSN-28 S-Sight: 4MP Active Deterrent Turret Hybrid 33152
1 x WD Purple Hard Drive 3.5" 2Tb Installed - 3 Year Warranty 46072
NVR Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant NVR
* IP Video Inputs: 4
* Onboard PoE: 4 Ports, Max budget, 50W total.
* Bandwidth: Input/ Output, both 64Mbps
* Recording: 4CH @ 5MP real time
* Max Playback: 1CH @ 5MP, 4CH @ D1
* Video Compression: H.265+ / H.265/ H.265S/ H.264
* Display Outputs: 1x HDMI 1920 x 1080, 1x VGA output
* Storage1x HDD bay. 2Tb installed for you.
* Analytic Support: DDA1 & DD2. LPR Capture Only (Eye-Sight). See specification sheet
* Search Mode: DDA Object, Smart Search, LPR, Time-Slice, Time, Event.
* Alarms: IPC. Add Provision-ISR IO-1606 USB Input & Output Module: 33501
* Ethernet Port: 1. Independent 100Mbps port
* USB: 2x Ports
* ONVIF Support: Full Device Support (Profiles T/G, ONVIF Version 20.12)
* Power Supply: 48VDC/ 1.04A
* APP Support 1: Provision CAM2 for iOS/ Android
* APP Support 2: IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/MAC
* Dimensions: W255 x D220 x H45mm
Monitor & UPS Options:
* Provision-ISR 24" Ultra-Thin Monitor: 50008* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
Camera Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant Camera
* Resolution: 1/3" CMOS 4MP (16:9)
* Lens / FOV: 2.8mm Lens 96° (H)
* D(O)RI: See specification sheet
* Video Format: H.265+, H.265, H.264+, H.264, MJPEG**
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Image Orientation: Mirror/ Flip, Corridor Mode
* Min Illumination Day: 0.1lux / Night: 0.005lux (F1.6, AGC On) 0lux with IR on
* Max IR Distance: 20m (1 High-Power IR LED)
* Analytics DDA1: (Object Detection) Sterile Area, Line Crossing, Object Counting (Line)
* Analytics DDA1: Object Counting (Area), Face Detection (10 Faces a frame), Heat Map
* Analytics DDA2: (Advanced Object Classification) Age, gender, vehicle brand, colour
* Audio: Built-in Microphone only. Audio Input/ Output
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* ONVIF: Profiles M/ T/ S/ G
* Power: DC12V/ ~450mA/ PoE/ ~7W
* Ingress Rating: Water Proof, IP67. Metal camera ball and shroud.
* Dimensions: Ø97mm × 82.6mm
Accessories:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB12 34083
* Ceiling Mount: PR-CB12 34082 and PR-B10EX extension sections 34062
