Provision-ISR Z5-25IPEN-4(IR):4MP 25x PTZ DDA Analytic WDR IR350m IP66 4.8-120mm
Stock Code:
33661
POA
Description

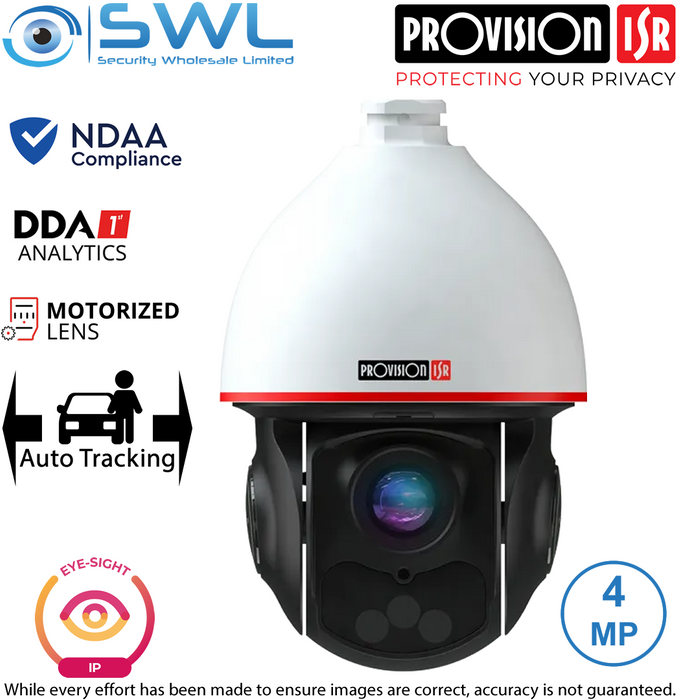

The Z4-25IPEN-4(IR) PTZ is an NDAA-compliant camera with impressive video quality and features. The Z5 provides basic connectivity options and standard motor speed while keeping a compact and sleek design. It can be installed almost anywhere with optional accessories and provides full compatibility with Provision-ISR's platforms (Ossia NVRs, Ossia VMS, Provision Cam2 Mobile App). DDA1 analytics provide the ability to accurately track persons or vehicles in a scene. Embedded Cyber Security.
Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* Sensor: 1/2.8" CMOS
* Resolution: 2560 × 1440 1-25/30FPS (4MP)
* Lens: 4.8mm (F1.55) – 120mm (F3.8). 57.6°(wide) ~ 2.5°(tele)
* True Day & Night – ICR
* Optical Zoom: x 25, Digital x 8
* D(O)RI: See specification sheet
* Compression: H.264/ H.265/ H264+/ H265+/ MJPEG
* Image Enhancement: True WDR (120dB)/ HLC/ BLC/ 3D-DNR, Defog
* Image Enhancement: Mirror/ Flip
^ Min Illumination: Color: 0.01Lux, B/W: 0.002Lux@(F1.65, AGC on), 0Lux with IR
* Smart IR Distance: 350m IR LED
* Auto-Tracking: DDA1 Human & Vehicle Object Detection
* Preset Speed: 50°/Sec, Preset Accuracy: 0.1°, 300 Positions
* Pan Range: 355°, Tilt Range: 95°
* 4 Patterns/ 8 Cruises/ Park Action/ Power Off Memory/ Scheduled Tasks
* Audio Input: 1Ch + Built-in Microphone
* Audio Output: 1Ch + Built-in Speaker
* Alarms: 1x Dry Contact IN / OUT
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* ONVIF: Profiles T/ S/ G
* Power Supply: PoE+ (802.3at) / DC12V±20%/3A (not included)
* Power Consumption: Max 24W (With IR, Heater & Fan Working)
* Ingress Rating: Water-Proof, IP66
* Dimensions: Ø197mm × 302mm
* NDAA: Compliant Camera
* Standard Wall Bracket Included
Accessories:
* Wall Mount Bracket with Back Box: PR-WJB-Z 34087* Pole Mount Bracket For 34087: PR-B60PB 34088
* Pole Mount Bracket: PR-B50PB 34032
* Corner Mount Bracket: PR-B50-ECB 34034
* Short Ceiling Drop Mount: 34086
