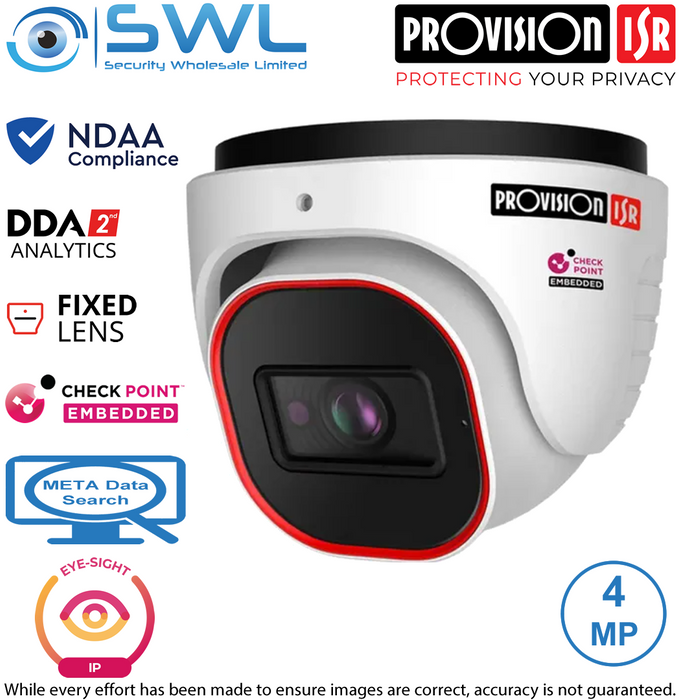

Provision-ISR DI-340IPEN-28-V5: Eye-Sight 4MP Turret WDR IR20m IP67 2.8mm
Stock Code:
33152
POA
Description
With a 2.8mm fixed lens, this 4MP camera is designed for short-distance surveillance in indoor and outdoor scenarios. Eye-Sight v5 cameras offer broad possibilities for the use of analytics including DDA1 (Detect-Distinguish-Alert); which combines accurate object recognition with line crossing, sterile area and object counting rules and DDA2, enabling appropriate NVRs to search footage based on 'metadata' such as age, colour, gender, vehicle brand and more. Check Point's Quantum IoT Nano agent is integrated into this model, providing an advanced threat prevention layer against the common attack vectors at runtime.
Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* Resolution: 1/3" CMOS 4MP (16:9)
* Lens / FOV: 2.8mm Lens 96° (H)
* D(O)RI: See specification sheet
* Video Format: H.265+, H.265, H.264+, H.264, MJPEG**
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Image Orientation: Mirror/ Flip, Corridor Mode
* Min Illumination Day: 0.1lux / Night: 0.005lux (F1.6, AGC On) 0lux with IR on
* Max IR Distance: 20m (1 High-Power IR LED)
* Analytics DDA1: (Object Detection) Sterile Area, Line Crossing, Object Counting (Line)
* Analytics DDA1: Object Counting (Area), Face Detection (10 Faces a frame), Heat Map
* Analytics DDA2: (Advanced Object Classification) Age, gender, vehicle brand, colour
* Audio: Built-in Microphone only. Audio Input/ Output
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* ONVIF: Profiles M/ T/ S/ G
* Power: DC12V/~450mA / PoE/~7W
* Ingress Rating: Water Proof, IP67. Metal camera ball and shroud.
* Dimensions: Ø97mm × 82.6mm
* NDAA: Compliant camera
Camera Bracket Options:
* IP66 Back Box: PR-JB12IP66 34074* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 + PR-WB12 34083
* Ceiling Mount: Back Box: 34074 + Drop Pole 34082
- Optional 20cm extensions 34062
* Angle Wall Mount: 34083 Wall Bracket + 34074 Back Box
- Optional 20cm extensions 34085
