ASSA ABLOY SGL1-FSM: Securitron GATE LOCK, BLACK, 907Kg
Make an Enquiry
Stock Code:
60105
POA
Warranty Details:
2 Years - 5 Years on Specific Products

Description

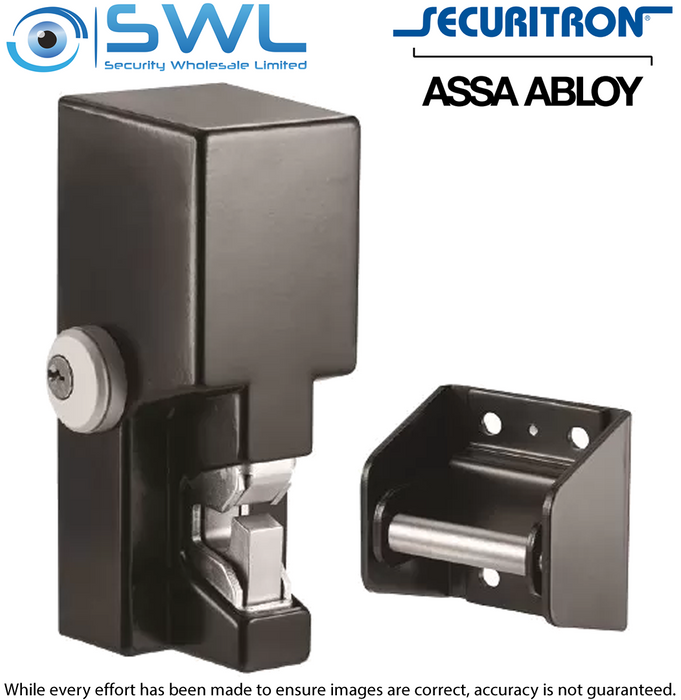

This heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides over 900Kg of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding doors.

Features:

* Holding Force: 907Kg
* Lock Status: Fail Safe, unlocks when power is cut
* Pre-Load Tollerance: Operates under preload up to 45Kg
* Mount: Surface Mount
* Automatic dual voltage - no field adjustment required
* Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override
* Self-aligning receiver (+/- 12mm horizontally) helps compensate for gate misalignment and sag
* Tamper resistant cast housing
* Optional latch status monitor
* Dimensions: 2-3/4inch L x 7-1/4inch W x 3-1/4inch D
* Electrical:
-12 Volts Initial (Peak): (~1.0 sec.) @ 870mA - Reduced: 290mA Power
-24 Volts Initial (Peak): (~1.0 sec.) @ 720mA - Reduced: 170mA Power
* Operating temperature: 50 to +75C
* Indoor or outdoor use
* Weight: 2.72Kg
