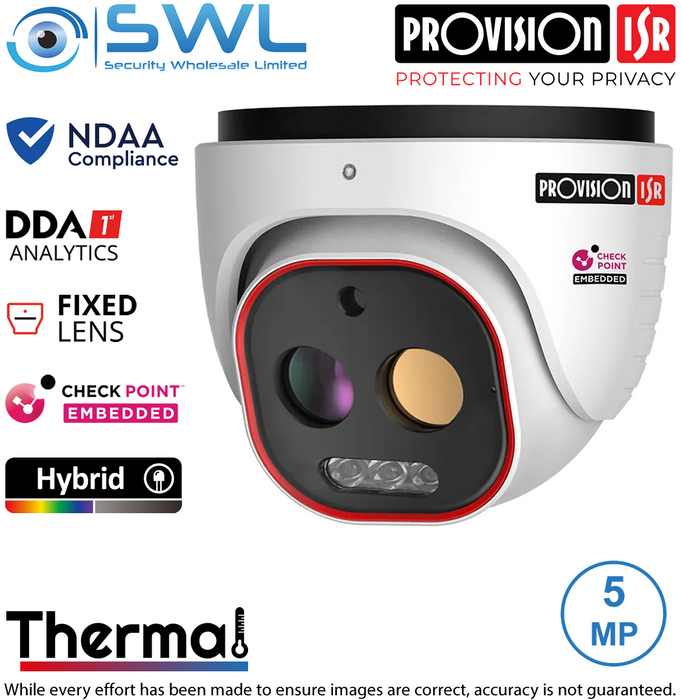

Provision-ISR DH-Thermal-3-V2: Thermal & 5MP Turret, 20m IR/ White LED IP66, 4mm
Description
Ideal for fire detection, temperature monitoring and security surveillance, this 5MP athermalised camera can detect, alert and provide complete situational awareness in the most challenging environments. This camera incorporates an optical lens and an athermalised module, allowing operators to monitor small areas in total darkness, glaring light and adverse weather by combining thermal and visible light images. Equipped with DDA™ Analytics (Detect-Distinguish- Alert) and 'Active Deterrence' mechanisms (white strobe light and speaker), the DH-Thermal-3-v2 delivers a strong solution to a number of surveillance needs. Check Point™ Quantum IoT Nano agent is integrated into this model, providing an advanced threat prevention layer against the common attack vectors at runtime.
Athermalised Sensor Specification:
* Thermal Sensor: 12µm Vanadium oxide uncooled focal plane detector* Spectral Range: 8µm-14µm
* Thermal Lens: 3.2mm (53°)
* Thermal Resolution: 256 × 192
* DRI Distance Human: Detection:133m Recognition: 33m Identification:17m
* DRI Distance Vehicle: Detection: 409m Recognition:102m Identification:51m
* DDA Analytics (Thermal): Sterile Area, Line Crossing, Audio Exception
* Temperature Range: -20° ~ 150° C
* Thermal Sensitivity: <50mK(@25°C, F#=1.0)
* Fire Detection Distance:11m (Flame size is 0.1m * 0.1m)
- In theory, when flame size is doubled, detection distance is doubled.
* On screen display: Registered temperature/s are displayed
Optical Camera Specification::
• Cyber Security: Quantum IoT Nano agent by Check Point™
* NDAA: Compliant Camera
* Image Sensor: 1/2.7" CMOS
* Lens: Optical: 4mm (74°)
* Optical Resolution: 2592 × 1944 25/30FPS (5MP)
• Compression: H.265/H.264/MJPEG
* True Day & Night – ICR
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Image Orientation: Mirror/ Flip
* Illumination: 20m (2 High-Power IR LEDs) + White Strobe light
* DDA 1 Analytics: (Object Recognition): Sterile Area, Crossing, Object Counting (Line),
* DDA 1 Analytics: (Object Recognition): Object Counting (Area), Loitering Detection,Illegal Parking
* Face Detection: 10 Faces per frame, when camera is not in DDA 1 mode.
* SD Card: Event/Schedule Record (Up to 256GB) 46039*
* Audio: Built-in MIC + Speaker + Audio input
* ONVIF: Profiles M/ T/ S/ G
* Ingress Rating: Water Proof, IP66. Metal camera case and knuckle.
* Power: DC12V/~650mA / PoE/~10W
* Dimensions: Ø111.5mm × 99.6mm
