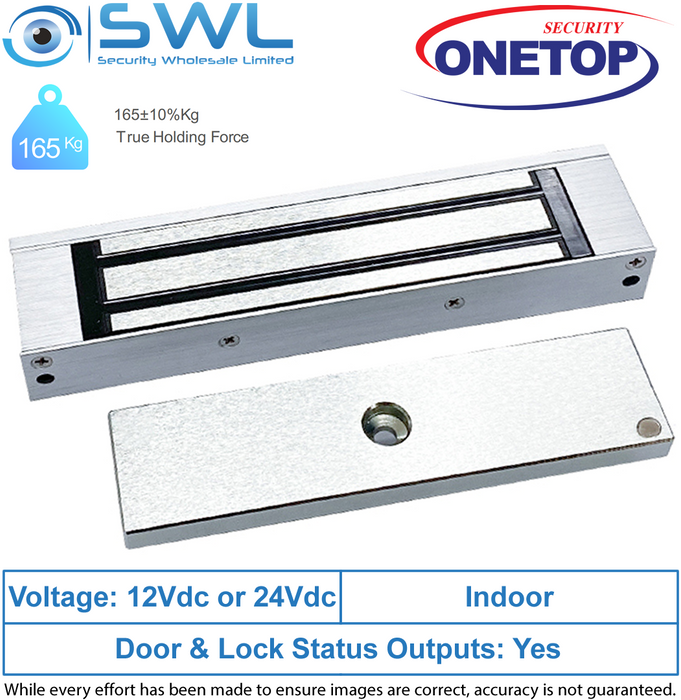

ONETOP CCW30S DSS: Micro Surface Mount Mag Lock, 12/24VDC, MONITORED 165Kg
Stock Code:
580131
POA
Description
The CCW30S is mini electromagnetic locks with a true holding force of 165Kg and efficiently treated high premium quality plating against corrosion, resistant up to 96 hours salt spray corrosion test and to perform to over 1 million operations usage lifespan.
Features:
* Holding Force: 165Kg ±10%* Surface Finish: Anodized Aluminium housing Zinc plated for anti-corrosion
* Fail-safe: Power-to-lock
* Lock Body Dimensions: L 165 x W 38.5 x D 21mm
* Armature Plate Dimensions: L130 x W 32 x H 8.5mm
* Dual Voltage: 12/24VDC
* Current draw: 360mA 122VDC, 180mA 24VDC
* Door Status Output (DSS): NO/COM, Max 24VDC; Max 3.0A
* Surge Protection: Built in Varistor (MOV)
* Expected Usage Lifespan: Over 1 miliion cycles
In-swing door L & XZ bracket (L&Z-CCW30)
Glass door bracket for 12mm thick glass: UBG12S
Armature plate holder: CHC
