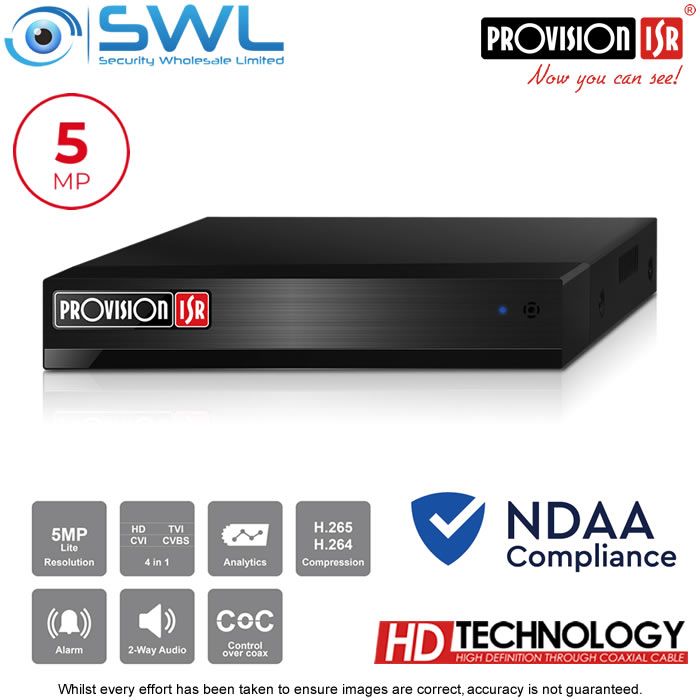

Provision-ISR SH-8100A5N-5L(MM)-V2: 8CH Hybrid DVR 8x AHD +4CH IP 1x HDD. No HDD
Stock Code:
33749
POA
Description
Provision-ISR SH-8100A5N-5L(MM)-V2 is a high-quality dynamic hybrid digital video recorder in an elegant mini metal case. Hybrid technology allows users to add advanced IP cameras alongside analogues ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder complies with NDAA demands and supports Provision-ISR's DDA Video Analytics for analog & IP cameras.
Features:
* NDAA: Compliant Device* Video Input Max Analogue: 8CH Standard BNC + 4CH IP (over Network)
* Video Input Max IP: 12CH IP (over Network) + 0CH Standard BNC
* Bandwidth: Incoming 32Mbps, Outgoing 60Mbps
* HD Analogue Recording:
A) 3K/5MP Lite: Up to 10FPS Per Channel
B) 4MP Lite / 2MP: Up to 12/15FPS Per Channel
C) 2MP Lite / 1MP: Up to 25/30FPS Per Channel
D) CVBS: 960TVL: Up to 25/30FPS Per Channel
* IP Recording: 5MP & lower: Up to 25/30FPS Per Channel
* Playback: Local: 8CH Simultaneously. Remote: 4CH Simultaneously
* Video Output: HDMI (1920x1080), VGA (1280x1024, 1024x768), CVBS ( Spot)
* Analytics: AI by IPC: DDA1 Analytics Supported by camera
* AI By DVR: AI Object detection, Line Crossing/Sterile Area (Up to 1 channel, at the expense of 4 SMD channels)
* Search Modes: Time-Slice, Time, Event, File Management, Smart Search
* Audio Input: 1CH + IPC Inputs
* Audio Output: 1CH + IPC Outputs
* Alarm Input: IP Cameras only
* Alarm Output: IP Cameras only
* Storage: 1x SATA HDD (Up to 6TB each)
* Network: 1x RJ-45: 10/100Mbps
* PTZ Support: RS-485 / CoC / IP over Network
* Power Supply: DC12V/2A
* Dimensions: W255 x D220 x H43mm
* Features based on FW Version: v1.4.0. Features are subject to firmware version changes
Storage Monitor & UPS Options:
* 1Tb 46072* 2Tb 46073
* 4Tb 46075
* 6Tb 460751 Max
* Provision-ISR 24" Ultra-Thin Monitor: 50008
* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
