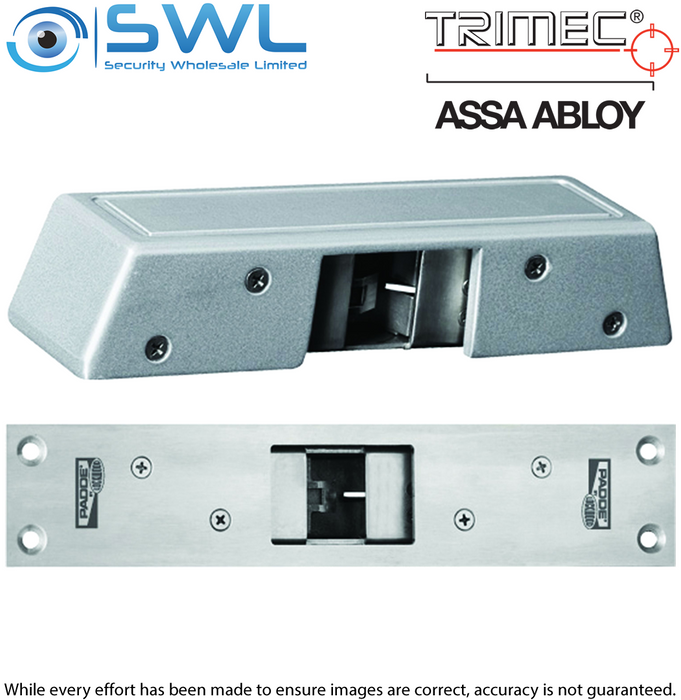

Trimec ES6001 (LT116001-010): Hook Lock PTL MORTICED SURFACE MOUNT, COVER, 680Kg
Stock Code:
60202
POA
Description
***** Ordered at request 3-4 day lead time *****
ES6001 series Hook locks are suitable for swinging doors, sliding doors and are easily attached to wood or steel door frames. Includes heavy duty design with a high preload (side load) capability of up to 300Kg, high holding force of up to 700Kg with an up to 4 hour fire rating. Both PTO and PTL models are available, as well as both recess and surface mounted versions. The surface mounted version is completed with a cast aluminium cover. ES6001 can be mounted vertically and horizontally, with self-latching ability without power for fire applications.
Specifications:
* Holding Force: 680Kg static strength rating* Voltage: 12-30Vdc Ground (OV)
* Current: 12Vdc – 250 mA after 1 sec. (initial current 830 mA) 24Vdc – 140 mA after 1 sec. (initial current 530 mA)
* Monitoring: Door locked (Solenoid) – Door Closed (Latch)
* Pre-Load: 300Kg pre-load capability
* Environment: Operational temperature range: -20°C to + 60°C
* Lock Body: Cast Aluminium Construction
* Lock Body: Solid Stainless Steel Construction
* Lock Bolt: Solid Stainless Steel
* Endurance: Internal testing achieved: 2,000,000 cycles of operation
* Standards: CE approved. Approved to UL1034 (highest level)
* Compliance: Fire rated up to 2hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets).
